Lexus NX: Short in D Squib (Dual Stage - 2nd Step) Circuit (B1810-B1813)

Lexus NX Service Manual / Vehicle Interior / Supplemental Restraint Systems / Airbag System / Short in D Squib (Dual Stage - 2nd Step) Circuit (B1810-B1813)

DESCRIPTION

The driver side squib 2nd step circuit consists of the airbag ECU assembly, spiral cable sub-assembly and horn button assembly.

The circuit instructs the SRS to deploy when deployment conditions are met.

These DTCs are stored when a malfunction is detected in the driver side squib 2nd step circuit.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

B1810

Short in D Squib (Dual Stage - 2nd Step) Circuit

One of the following conditions is met:
  • The airbag ECU assembly detects a line short circuit signal 5 times in the driver side squib 2nd step circuit during the primary check.
  • A horn button assembly (driver side squib 2nd step) malfunction.
  • A spiral cable sub-assembly malfunction.
  • An airbag ECU assembly malfunction.
  • Instrument panel wire
  • Spiral cable sub-assembly
  • Horn button assembly (Driver side squib 2nd step)
  • Airbag ECU assembly

B1811

Open in D Squib (Dual Stage - 2nd Step) Circuit

One of the following conditions is met:
  • The airbag ECU assembly detects an open circuit signal in the driver side squib 2nd step circuit for 2 seconds.
  • A horn button assembly (driver side squib 2nd step) malfunction.
  • A spiral cable sub-assembly malfunction.
  • An airbag ECU assembly malfunction.
  • Instrument panel wire
  • Spiral cable sub-assembly
  • Horn button assembly (Driver side squib 2nd step)
  • Airbag ECU assembly

B1812

Short in D Squib (Dual Stage - 2nd Step) Circuit (to Ground)

One of the following conditions is met:
  • The airbag ECU assembly detects a short circuit to ground signal in the driver side 2nd step circuit for 0.5 seconds.
  • A horn button assembly (driver side squib 2nd step) malfunction.
  • A spiral cable sub-assembly malfunction.
  • An airbag ECU assembly malfunction.
  • Instrument panel wire
  • Spiral cable sub-assembly
  • Horn button assembly (Driver side squib 2nd step)
  • Airbag ECU assembly

B1813

Short in D Squib (Dual Stage - 2nd Step) Circuit (to +B)

One of the following conditions is met:
  • The airbag ECU assembly detects a short circuit to B+ signal in the driver side squib 2nd step circuit for 0.5 seconds.
  • A horn button assembly (driver side squib 2nd step) malfunction.
  • A spiral cable sub-assembly malfunction.
  • An airbag ECU assembly malfunction.
  • Instrument panel wire
  • Spiral cable sub-assembly
  • Horn button assembly (Driver side squib 2nd step)
  • Airbag ECU assembly

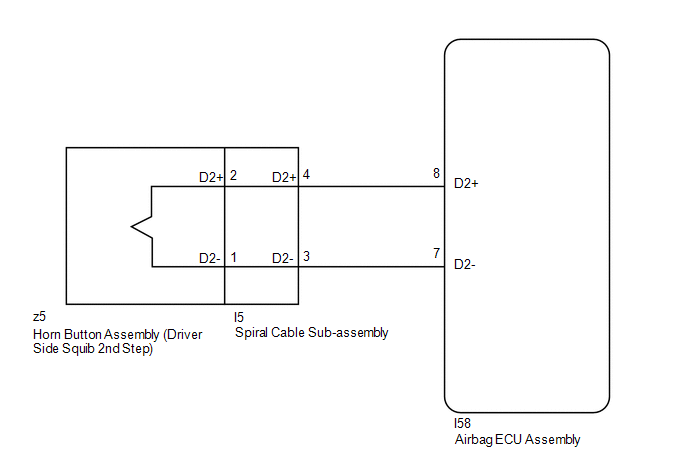

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • When installing the spiral cable sub-assembly and steering wheel, be sure to adjust the spiral cable sub-assembly as it may break if the steering wheel is turned before adjusting the spiral cable sub-assembly.

    Click here

  • After the power switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Click here

  • When disconnecting and reconnecting the auxiliary battery

    Click here

    HINT:

    When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

    Click here

  • After replacing the airbag ECU assembly, refer to initialization.

    Click here

HINT:

To perform the simulation method, enter check mode (signal check) with the Techstream (Click here ), and then wiggle each connector of the airbag system or drive the vehicle on various types of road (Click here ).

PROCEDURE

1.

CHECK HORN BUTTON ASSEMBLY (DRIVER SIDE SQUIB 2ND STEP)

(a) Turn the power switch off.

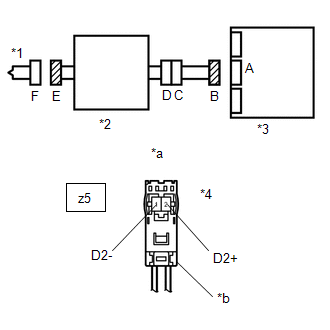

*1

Horn Button Assembly (Driver Side Squib 2nd Step)

*2

Spiral Cable Sub-assembly

*3

Airbag ECU Assembly

*4

Connector E

*5

SST

*a

Front view of wire harness connector

(to Horn Button Assembly [Driver Side Squib 2nd Step])

*b

Color: Black

(b) Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.

(c) Disconnect the connector from the horn button assembly.

(d) Connect the white wire side of SST (resistance: 2.1 Ω) to connector E (black connector).

CAUTION:

Never connect the tester to the horn button assembly (driver side squib 2nd step) for measurement, as this may lead to a serious injury due to airbag deployment.

NOTICE:

  • Do not forcibly insert SST into the terminals of the connector when connecting SST.
  • Insert SST straight into the terminals of the connector.

SST: 09843-18061

(e) Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.

(f) Turn the power switch on (IG), and wait for at least 60 seconds.

(g) Clear the DTCs.

Click here

Body Electrical > SRS Airbag > Clear DTCs

(h) Turn the power switch off.

(i) Turn the power switch on (IG), and wait for at least 60 seconds.

(j) Check for DTCs.

Click here

Body Electrical > SRS Airbag > Trouble Codes

HINT:

Codes other than DTC B1810, B1811, B1812 and B1813 may be output at this time, but they are not related to this check.

(k) Turn the power switch off.

(l) Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.

(m) Disconnect SST from connector E.

DTC B1810, B1811, B1812 or B1813 is not output

REPLACE HORN BUTTON ASSEMBLY

DTC B1810, B1811, B1812 or B1813 is output

2.

CHECK CONNECTORS

(a) Disconnect the connectors from the airbag ECU assembly.

(b) Check that the connectors (on the airbag ECU assembly side and horn button assembly side) are not damaged.

OK:

The lock button is not disengaged, and the claw of the lock is not deformed or damaged.

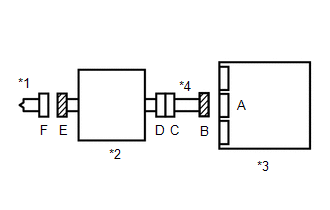

*1

Horn Button Assembly (Driver Side Squib 2nd Step)

*2

Spiral Cable Sub-assembly

*3

Airbag ECU Assembly

*4

Instrument Panel Wire

NG

REPLACE INSTRUMENT PANEL WIRE OR SPIRAL CABLE SUB-ASSEMBLY

OK

3.

CHECK DRIVER SIDE SQUIB 2ND STEP CIRCUIT

(a) Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.

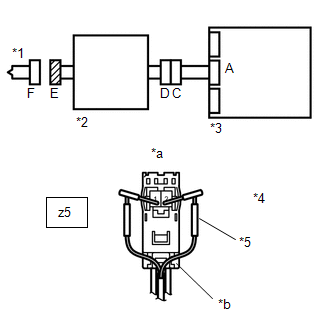

*1

Horn Button Assembly (Driver Side Squib 2nd Step)

*2

Spiral Cable Sub-assembly

*3

Airbag ECU Assembly

*4

Connector E

*a

Front view of wire harness connector

(to Horn Button Assembly [Driver Side Squib 2nd Step])

*b

Color: Black

(b) Turn the power switch on (IG).

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Switch Condition

Specified Condition

z5-2 (D2+) - Body ground

Power switch on (IG)

Below 1 V

z5-1 (D2-) - Body ground

Power switch on (IG)

Below 1 V

(d) Turn the power switch off.

(e) Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.

(f) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

z5-2 (D2+) - z5-1 (D2-)

Always

Below 1 Ω

(g) Release the activation prevention mechanism built into connector B.

Click here

(h) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

z5-2 (D2+) - z5-1 (D2-)

Always

1 MΩ or higher

(i) Restore the released activation prevention mechanism of connector B to its original condition.

(j) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

z5-2 (D2+) - Body ground

Always

1 MΩ or higher

z5-1 (D2-) - Body ground

Always

1 MΩ or higher

NG

GO TO STEP 5

OK

4.

CHECK DTC

(a) Connect the connectors to the horn button assembly and airbag ECU assembly.

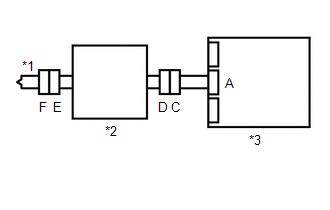

*1

Horn Button Assembly (Driver Side Squib 2nd Step)

*2

Spiral Cable Sub-assembly

*3

Airbag ECU Assembly

(b) Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.

(c) Turn the power switch on (IG), and wait for at least 60 seconds.

(d) Clear the DTCs.

Click here

Body Electrical > SRS Airbag > Clear DTCs

(e) Turn the power switch off.

(f) Turn the power switch on (IG), and wait for at least 60 seconds.

(g) Check for DTCs.

Click here

Body Electrical > SRS Airbag > Trouble Codes

HINT:

Codes other than DTC B1810, B1811, B1812 and B1813 may be output at this time, but they are not related to this check.

DTC B1810, B1811, B1812 or B1813 is not output

USE SIMULATION METHOD TO CHECK

DTC B1810, B1811, B1812 or B1813 is output

REPLACE AIRBAG ECU ASSEMBLY

5.

CHECK INSTRUMENT PANEL WIRE

(a) Disconnect the instrument panel wire connector from the spiral cable sub-assembly.

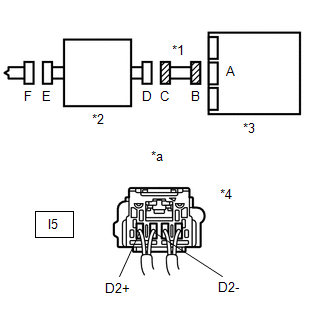

*1

Instrument Panel Wire

*2

Spiral Cable Sub-assembly

*3

Airbag ECU Assembly

*4

Connector C

*a

Rear view of wire harness connector

(to Spiral Cable Sub-assembly)

(b) Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.

(c) Turn the power switch on (IG).

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Switch Condition

Specified Condition

I5-4 (D2+) - Body ground

Power switch on (IG)

Below 1 V

I5-3 (D2-) - Body ground

Power switch on (IG)

Below 1 V

(e) Turn the power switch off.

(f) Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.

(g) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

I5-4 (D2+) - I5-3 (D2-)

Always

Below 1 Ω

(h) Release the activation prevention mechanism built into connector B.

Click here

(i) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

I5-4 (D2+) - I5-3 (D2-)

Always

1 MΩ or higher

(j) Restore the released activation prevention mechanism of connector B to its original condition.

(k) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

I5-4 (D2+) - Body ground

Always

1 MΩ or higher

I5-3 (D2-) - Body ground

Always

1 MΩ or higher

OK

REPLACE SPIRAL CABLE SUB-ASSEMBLY

NG

REPLACE INSTRUMENT PANEL WIRE
