Lexus NX: Other interior features

Sun visors

Lexus NX. Using the other interior features

  1. To set the visor in the forward position, flip it down.
  2. To set the visor in the side position, flip down, unhook, and swing it to the side.
  3. To use the side extender, place the visor in the side position, then slide it backward.

Vanity mirrors

■ Sun visors Slide the cover to open.

The light turns on when the cover is opened.

Lexus NX. Using the other interior features

■ Auxiliary box Remove the lid of auxiliary box using the strap A.

There is a vanity mirror on the back side of the lid.

Lexus NX. Using the other interior features

■Automatic light off to prevent 12-volt battery discharge If the vanity lights remain on when the power switch is turned off, the lights will go off automatically after 20 minutes.

NOTICE

■To prevent damage to the vanity mirror When the lid of auxiliary box is removed, do not subject it to strong impacts or set heavy objects on top of it.

■To prevent 12-volt battery discharge Do not leave the vanity lights on longer than necessary when the hybrid system is off.

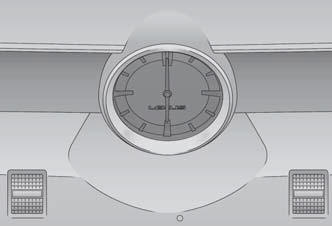

Clock

The GPS clock's time is automatically adjusted by utilizing GPS time information.

For details, refer to the "NAVIGATION AND MULTIMEDIA SYSTEM OWNER'S MANUAL".

Lexus NX. Using the other interior features

Power outlet (12 VDC)

Please use a power supply for electronic goods that use less than 12 VDC/10 A (power consumption of 120 W).

When using electronic goods, make sure that the power consumption of all the connected power outlets is less than 120 W.

■ Console box Open the lid.

Lexus NX. Using the other interior features

■ Luggage compartment Open the lid.

Lexus NX. Using the other interior features

■The power outlet can be used when The power switch is in ACCESSORY or ON mode.

■When stopping the hybrid system Disconnect electrical devices with charging functions, such as mobile battery packs. If such devices are left connected, the hybrid system may not stop normally.

■Using power outlet The notch in console box allows power cables to be passed through even when the console box is closed.

Lexus NX. Using the other interior features

NOTICE

■When power outlet is not in use To avoid damaging the power outlet, close the power outlet lid when the power outlet is not in use.

Foreign objects or liquids that enter the power outlet may cause a short circuit.

■To prevent 12-volt battery discharge Do not use the power outlet longer than necessary when the hybrid system is off.

Power outlet (120 VAC) (if equipped)

Please use a power supply for electronic goods that use less than 120 VAC (power consumption of 100 W).

Open the lid.

Lexus NX. Using the other interior features

■The power outlet can be used when The power switch is in ON mode.

NOTICE

■When power outlet (120 VAC) is not in use To avoid damaging the power outlet, close the power outlet lid when the power outlet is not in use.

Foreign objects or liquids that enter the power outlet may cause a short circuit.

■To prevent blown fuse Do not use a 120 VAC appliance that requires more than 100 W.

If a 120 VAC appliance that consumes more than 100 W is used, the protection circuit will cut the power supply.

■To prevent battery discharge Do not use the power outlet longer than necessary when the hybrid system is off.

■Appliances that may not operate properly The following 120 VAC appliances may not operate properly even if their power consumption is under 100 W:

Wireless charger (if equipped)

A portable device can be charged by just placing Qi standard wireless charge compatible portable devices according to the Wireless Power Consortium, such as smart phones and mobile batteries, etc., on the charge area.

This function cannot be used with portable devices that are larger than the charging area. Also, depending on the portable device, it may not operate as normal. Please read the operation manual for portable devices to be used.

■ The "Qi" symbol The "Qi" symbol is a trademark of the Wireless Power Consortium.

Lexus NX. Using the other interior features

■ Name for all parts

Lexus NX. Using the other interior features

  1. Power supply switch
  2. Operation indicator light
  3. Charge area

■ Using the wireless charger

1. Open the console box. 2. Press the power supply switch of the wireless charger.

Switches on and off with each press of the power supply switch.

When turned on, the operation indicator light (green) comes on.

Even with the hybrid system off, the on/off state of the power supply switch is memorized.

Lexus NX. Using the other interior features

3. Place the charging side of the portable device down.

When charging, the operation indicator light (orange) comes on.

If charging is not occurring, try placing the portable device as close to the center of the charging area as possible.

When charging is complete, the operation indicator light (green) comes on.

Lexus NX. Using the other interior features

■ Lighting conditions of operation indicator light

Operation indicator light Conditions
Turning off When the Wireless charger power supply is off
Green (comes on) On Standby (charging possible state)
When charging is complete*
Orange (comes on) When placing the portable device on the charging area (detecting the portable device)
Charging

*: Depending on the portable device, there are cases where the operation indicator light will continue being lit up orange even after the charging is complete.

When an error occurs, the operation indicator light flashes an orange color. Handle the error based on the following tables.

Suspected causes Handling method
Vehicle to charger communication failure. Contact your Lexus dealer.
Suspected causes Handling method
A foreign substance is between the portable device and charge area. Remove the foreign substance from between portable device and the charge area.
The portable device is out of sync due to the device being shifted from the center of the charge area. Place the portable device near the center of the charge area.
Suspected causes Handling method
Temperature rising within the wireless charger. Stop charging at once and start charging again after for a while.

■The wireless charger can be operated when The power switch is in ACCESSORY or ON mode.

■Usable portable devices

■When covers and accessories are attached to portable devices Do not charge in situations where cover and accessories not able to handle Qi are attached to the portable device. Depending on the type of cover and accessory, it may not be possible to charge. When charging is not performed even with the portable device placed on the charge area, remove the cover and accessories.

■While charging, noise enters the AM radio Turn off the wireless charger and confirm that the noise has decreased. If the noise decreases, continuously pushing the power supply switch of the wireless charger for 2 seconds, the frequency of the charger can be changed and the noise can be reduced.

Also, on that occasion, the operation indicator light will flash orange 2 times.

■Important points of the wireless charger

■Operation sounds When the power supply is turned on, while searching for the portable device a sound will be produced, however this is not a malfunction.

WARNING

■Caution while driving When charging a portable device, for safety reasons, the driver should not operate the main the part of the portable device while driving.

■Caution regarding interference with electronic devices People with implantable cardiac pacemakers, cardiac resynchronization therapy- pacemakers or implantable cardioverter defibrillators, as well as any other electrical medical device, should consult their physician about the usage of the wireless charger.

The operations of the wireless charger may have an affect on medical devices.

■To prevent damage or burns Observe the following precautions.

Failure to do so may result in a possibility of equipment failure and damage, catch fire, burns due to overheat.

NOTICE

■Conditions in which the function may not operate correctly In the following conditions, it may not operate correctly

In addition, excluding the above-mentioned, when the charger does not perform normally or the operation display lamp is flashing continuously, it is considered that the wireless charger is malfunctioning.

Contact your Lexus dealer.

■To prevent failure or damage to data

■To prevent 12-volt battery discharge When the hybrid system is stopped, do not use the wireless charger for a long time.

Armrest

Fold down the armrest for use.

Lexus NX. Using the other interior features

NOTICE

■To prevent damage to the armrest Do not apply too much load on the armrest.

Assist grips

An assist grip installed on the ceiling can be used to support your body while sitting on the seat.

Lexus NX. Using the other interior features

WARNING

■Assist grips Do not use the assist grip when getting in or out of the vehicle or rising from your seat.

NOTICE

■To prevent damage to the assist grip Do not hang any heavy object or put a heavy load on the assist grip.
