Lexus NX: Customization

Customizable features

Your vehicle includes a variety of electronic features that can be personalized to suit your preferences.

The settings of these features can be changed using the multi-information display, the Remote Touch, or at your Lexus dealer.

Customizing vehicle features

When customizing vehicle features, ensure that the vehicle is parked in a safe place with the shift lever in P and the parking brake set.

■ Changing using the Remote Touch

1. Press the "MENU" button on the Remote Touch.

2. Select on the menu screen and select "Vehicle".

3. Select "Vehicle Customization".

Various setting can be changed. Refer to the list of settings that can be changed for details.

■ Changing using the multi-information display

1. Press or of the meter control switches and select .

2. Press or of the meter control switches, select the item, and then press .

3. Press or of the meter control switches, select the desired setting, and then press .

To go back to the previous screen or exit the customize mode, press .

WARNING

■Cautions during customization As the hybrid system needs to be operating during customization, ensure that the vehicle is parked in a place with adequate ventilation. In a closed area such as a garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This may lead to death or a serious health hazard.

NOTICE

■During customization To prevent 12-volt battery discharge, ensure that the hybrid system is operating while customizing features.

Customizable features

Some function settings are changed simultaneously with other functions being customized.

Contact your Lexus dealer.

  1. Settings that can be changed using the Remote Touch
  2. Settings that can be changed using the multi-information display
  3. Settings that can be changed by your Lexus dealer
  4. Settings that can be changed using the vehicle switch

Definition of symbols: O = Available, - =Not available

■ Door lock

Lexus NX. Customizable features

■ Smart access system with push-button start and wireless remote control

Lexus NX. Customizable features

■ Smart access system with push-button start

Lexus NX. Customizable features

■ Wireless remote control

Lexus NX. Customizable features

■ Automatic light control system

Lexus NX. Customizable features

■ Lights

Lexus NX. Customizable features

■ Illumination

Lexus NX. Customizable features

■ Multi-information display

Lexus NX. Customizable features

Lexus NX. Customizable features

*1: The default setting varies according to countries.
*2: Some status screens cannot be registered (indicated on the multi-information display)
*3: 2 of the following items: current fuel consumption, average fuel economy (after reset), average fuel economy (after refuel), average fuel economy (after start), average vehicle speed (after reset), average vehicle speed (after start), distance (driving range), distance (after start), elapsed time (after reset), elapsed time (after start), blank
*4: Intersection guidance, Incoming calls, Adjust brightness

■ Head-up display*

Lexus NX. Customizable features

*: If equipped

■ Automatic air conditioning system

Lexus NX. Customizable features

■ Eco mode

Lexus NX. Customizable features

■ Power windows

Lexus NX. Customizable features

■ Moon roof*1

Lexus NX. Customizable features

*1: If equipped
*2: This function cannot be customized unless power window operations, using the wireless remote control or mechanical key, is enabled.

■ Turn signal lever

Lexus NX. Customizable features

■ PKSA (Parking Support Alert)*

Lexus NX. Customizable features

*: If equipped

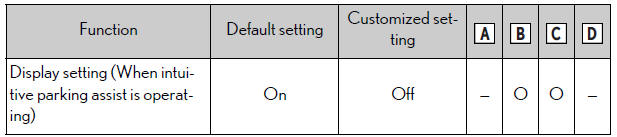

■ Intuitive parking assist*

Lexus NX. Customizable features

*: If equipped

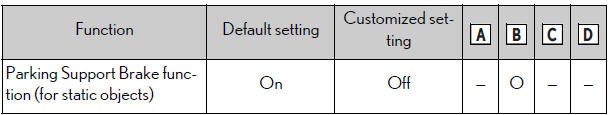

■ Parking Support Brake function (for static objects)*

Lexus NX. Customizable features

*: If equipped

■ Driving position memory

Lexus NX. Customizable features

*: If equipped

■ Outside rear view mirrors

Lexus NX. Customizable features

■ LTA (Lane Tracing Assist)*

Lexus NX. Customizable features

Lexus NX. Customizable features

*: If equipped

■ LDA (Lane Departure Alert with steering control)*

Lexus NX. Customizable features

*: If equipped

■ PCS (Pre-Collision System)

Lexus NX. Customizable features

■ RSA (Road Sign Assist)*

Lexus NX. Customizable features

Lexus NX. Customizable features

*: If equipped

■ Power back door*1

Lexus NX. Customizable features

*1: If equipped
*2: Configured by operating the switch of the lower back door.
*3:While carrying the electronic key on your person, press the back door opener switch.
*4:When the towing hitch is installed, the kick sensor does not work

■Vehicle customization

■In the following situations, customize mode in which the settings can be changed through the multi-information display will automatically be turned off.

Initialization

Items to initialize

The following items must be initialized for normal system operation after such cases as the 12-volt battery being reconnected, or maintenance being performed on the vehicle.

List of the items to initialize

Item When to initialize
Parking Support Brake function (for static objects)* After reconnecting or changing the 12-volt battery
Message indicating maintenance is required (Except for Canada) After the maintenance is performed
Tire pressure warning system
  • When rotating the tires on vehicles with differing front and rear tire inflation pressures
  • When changing the tire inflation pressure by changing traveling speed or load weight, etc.
  • When changing the tire size
Oil maintenance After the maintenance is performed
Lexus parking assist monitor*
  • After reconnecting or changing the 12-volt battery
  • After changing a fuse
Panoramic view monitor*
Power back door*
Power window
Moon roof* When functioning abnormally

*: If equipped
