Lexus NX: Luggage compartment features

Cargo hooks

Raise the hook to use.

The cargo hooks are provided for securing loose items.

Lexus NX. Using the storage features

WARNING

■When cargo hooks are not in use To avoid injury, always return the hooks to their stowed positions when not in use.

Cargo net hooks

Raise the hook to use.

The cargo net can be hanged, using the hook.

Lexus NX. Using the storage features

WARNING

■When cargo net hooks are not in use To avoid injury, always return the hooks to their stowed positions when not in use.

Grocery bag hooks

Lexus NX. Using the storage features

NOTICE

■To prevent damage to the grocery bag hooks Do not hang any object heavier than 11 lb.

(5 kg) on the grocery bag hooks.

Deck under tray

Lift the deck board and attach the hook. The following item can be stowed.

Lexus NX. Using the storage features

  1. First-aid kit and other items
  2. Accessories
  3. Warning reflector*

*: The warning reflector itself is not included as an original equipment.

Deck board

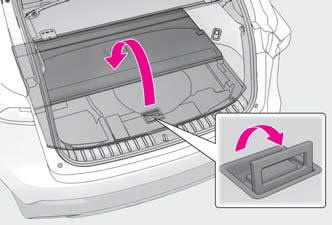

1. Open the back door.

Lexus NX. Using the storage features

2. Pull the lever upwards and open the deck board.

Lexus NX. Using the storage features

3. Lift the deck board and remove the hook on the backside of the deck board.

Lexus NX. Using the storage features

4. Use the hook to secure the deck board as shown in the illustration.

Lexus NX. Using the storage features

■When attaching the side deck board When attaching the side deck board, attach it so that the " FRONT" mark points to the front side of the vehicle.

Lexus NX. Using the storage features

WARNING

■If the deck boards are opened or removed Return them to their original positions before driving. In the event of sudden braking, an accident may occur due to an occupant being struck by the deck boards or the items stored in the deck under tray.

Stowing the luggage cover

1. Unhook the cords.

Lexus NX. Using the storage features

2. Fold up the luggage cover.

Lexus NX. Using the storage features

3. Pull the lever upwards and open the deck board.

Lexus NX. Using the storage features

4. Remove the luggage cover.

When the seatback for the rear seat is collapsed to the rear, remove the cover after the cover most upright position.

Lexus NX. Using the storage features

5. Stow the luggage cover in the deck under tray while lifting the deck board.

Lexus NX. Using the storage features

WARNING

■Luggage cover
