SYSTEM DESCRIPTION

NAVIGATION SYSTEM OUTLINE

(a) Vehicle position tracking methods

It is essential that the navigation system correctly tracks the current vehicle position and displays it on the map. There are 2 methods to track the current vehicle position: autonomous (dead reckoning) and GPS* (satellite) navigation. Both navigation methods are used in conjunction with each other.

*: GPS (Global Positioning System)

Operation

Description

Vehicle Position Calculation

The navigation ECU calculates the current vehicle position (direction and current position) using the direction deviation signal from the gyro sensor and driving distance signal from the vehicle speed sensor and creates the driving route.

Map Display Processing

The navigation ECU processes the vehicle position data, vehicle driving track and map data from the internal memory.

Map Matching

The map data from the internal memory is compared to the vehicle position and driving track data. Then, the vehicle position is matched with the nearest road.

GPS Correction

The vehicle position is matched to the position measured by the GPS. Then, the GPS measurement position data is compared with the vehicle position and driving track data. If the position is very different, the GPS measurement position is used.

Distance Correction

The vehicle speed signal includes the error caused by tire wear and slippage between the tires and road surface. Distance correction is performed to account for this. The radio receiver assembly automatically offsets the signal to make up for the difference between it and the distance data of the map. The offset is automatically updated.

HINT:

The combination of autonomous and GPS navigation makes it possible to display the vehicle position even when the vehicle is in places where GPS signals cannot be received. When only autonomous navigation is used, however, the mapping accuracy may slightly decrease.

(b) Autonomous navigation

This method determines the relative vehicle position based on the driving track determined by the gyro located in the navigation ECU and the vehicle speed signal.

(1) Gyro sensor

Used to calculate the direction by detecting angular velocity. It is located in the navigation ECU.

(2) Vehicle speed signal

Used to calculate the vehicle driving distance.

(c) GPS* navigation (Satellite navigation)

This method detects the absolute vehicle position using radio waves from GPS satellites.

*: GPS satellites were launched by the U.S. Department of Defense for military purposes.

Number of Satellites

Measurement

Description

2 or less

Measurement is impossible

Vehicle position cannot be obtained because the number of satellites is not enough.

3

2-dimensional measurement is possible

Vehicle position is obtained based on the current longitude and latitude. (This is less precise than 3-dimensional measurement.)

4

3-dimensional measurement is possible

Vehicle position is obtained based on the current longitude, latitude and altitude.

(d) Map matching

The current driving route is calculated by autonomous navigation (according to the gyro sensor and vehicle speed signal) and GPS navigation. This information is then compared with possible road shapes from the map data in the internal memory and the vehicle position is set onto the most appropriate road.

DISC PLAYER OUTLINE

(a) A disc player uses a laser pickup to read digital signals recorded on a disc. By converting the digital signals to analog, it can play music, video and audio.

CAUTION:

Do not look directly at the laser pickup because the disc player uses an invisible laser beam. Be sure to operate the player only as instructed.

NOTICE:

  • Do not disassemble any part of the disc player.
  • Do not apply oil to the disc player.
  • Do not insert anything but a disc into the disc player.

(b) This player can play only audio CDs, CD-Rs (CD-Recordable) and CD-RWs (CD-ReWritable) that have any of the following marks:

(c) This player can play only DVD videos that have any of the following marks:

(d) This player can play only DVD-Rs (DVD-Recordable) and DVD-RWs (DVD-ReWritable) that were recorded in video format and that have any of the following marks:

(e) The following products may not be playable on your player.

  • SACD
  • DTS CD
  • Copy-protected CD
  • Super Video CD
  • DVD audio
  • DVD-RAM

(f) Precautions for use of discs

NOTICE:

  • CD-Rs, CD-RWs, DVD-Rs (DVD-Recordable) and DVD-RWs (DVD-ReWritable) may not be played depending on the recording conditions or characteristics of the discs, or due to damage, dirt or deterioration caused by leaving the discs in the cabin for a long time.
  • Unfinalized CD-Rs, CD-RWs, DVD-Rs (DVD-Recordable) and DVD-RWs (DVD-ReWritable) cannot be played.
  • CD-Rs, CD-RWs, DVD-Rs (DVD-Recordable) and DVD-RWs (DVD-ReWritable) are more easily affected by a hot and humid environment than discs used for normal audio CDs. For this reason, some CD-Rs and CD-RWs may not play.
  • If there are fingerprints or scratches on a disc, the disc may not play or the disc may skip.
  • Some CD-Rs, CD-RWs, DVD-Rs (DVD-Recordable) and DVD-RWs (DVD-ReWritable) may deteriorate if they are left in the cabin for a long time.
  • Keep CD-Rs, CD-RWs, DVD-Rs (DVD-Recordable) and DVD-RWs (DVD-ReWritable) in an opaque case.
  • SECAM color television standard discs cannot be played.
  • DualDiscs that mate DVD recorded material on one side with CD digital audio material on the other cannot be played.
  • Keep the discs away from dirt. Be careful not to damage the discs or leave fingerprints on them.
  • Hold discs by the outer edge and center hole with the label side up.
  • Leaving the disc exposed halfway out of the slot for a long time after pressing the disc eject button may cause deformation of the disc, making the disc unusable.
  • If discs have adhesive tape, stickers, disc labels or any traces of such labels attached, the discs may not be ejected or player malfunctions may result.
  • Keep the discs away from direct sunlight. (Exposure to direct sunlight may cause deformation of the disc, making the disc unusable.)
  • Do not use odd-shaped discs because these may cause player malfunctions.
  • Do not use discs whose recording portion is transparent or translucent because they may not be inserted, ejected or played normally.
  • Use only 4.7 in. (12 cm) discs.
  • Do not use 3 in. (8 cm) CDs either with or without adaptors.

HINT:

  • When it is cold or raining, if the windows fog up, mist and condensation may form in the player. In such cases, the disc may skip or stop in the middle of play. Ventilate or dehumidify the cabin for a while before using the player.
  • The disc may skip if the player experiences strong vibrations when the vehicle is driven on rough roads or similar uneven surfaces.

(g) Cleaning

NOTICE:

Do not use a lens cleaner because it may cause a malfunction in the pickup portion of the player.

(1) If dirt is on the disc surface, wipe it clean with a soft dry cloth such as an eyeglass cleaner for plastic lenses from the inside to the outside in a radial direction.

NOTICE:

  • Pressing on the disc by hand or rubbing the disc with a hard cloth may scratch the disc surface.
  • Use of solvents such as record spray, antistatic agents, alcohol, benzine, thinners or a chemical cloth may cause damage to the disc, making the disc unusable.

USB FUNCTION OUTLINE

(a) The No. 1 stereo jack adapter assembly is equipped with a USB terminal. Connecting a USB memory device or "iPod" to the No. 1 stereo jack adapter assembly allows compatible files to be played Not only is it possible to play music from a USB memory device with audio functions, it is also possible to play compatible music files that are stored on a USB memory device. Also, the "iPod" control software is installed on the radio receiver assembly, allowing song selection from the list, switching of the shuffle mode, etc., from the multi-display assembly screen.

HINT:

Operation through the controls of a USB device or some "iPod" cannot be performed while it is connected.

(b) USB system compatible devices

(1) USB device

The following device formats can be used:

Compatible USB device formats

  • USB communication format: USB 2.0 HS (480 Mbps)
  • File format: FAT16/32 (Windows)
  • Class: Mass storage class

MP3, WMA and AAC files written to a USB device with any format other than those listed above may not play correctly, and their names and folder names may not be displayed correctly.

Items related to standards and limitations are as follows:

  • Maximum directory hierarchy: 8 levels
  • Maximum number of folders in device: 3000 (including the root folder)
  • Maximum number of files in device: 9999
  • Maximum number of files per folder: 255

(2) "iPod"

"iPhone", "iPod nano" and "iPod touch" are trademarks of Apple Inc., registered in the U.S. and other countries.

The following "iPhone", "iPod", "iPod nano", and "iPod touch" devices can be used with this system.

Made for:

  • "iPhone X"
  • "iPhone 8"
  • "iPhone 8 plus"
  • "iPhone 7"
  • "iPhone 7 plus"
  • "iPhone SE"
  • "iPhone 6s"
  • "iPhone 6s plus"
  • "iPhone 6"
  • "iPhone 6 plus"
  • "iPhone 5s"
  • "iPhone 5c"
  • "iPhone 5"
  • "iPhone 4s"
  • "iPod touch" (6th generation)
  • "iPod touch" (5th generation)
  • "iPod nano" (7th generation)

HINT:

  • Depending on differences between models or software versions etc., some models might be incompatible with this system.
  • "iPod video" is not supported.

HIGH-RESOLUTION SOUND SOURCE OUTLINE

(a) This device supports high-resolution sound sources.

(b) The definition of high-resolution is based on the standards of groups such as the CTA (Consumer Technology Association).

(c) The following formats and media can be used:

Supported formats

WAV, FLAC, ALAC, OGG Vorbis

Playable media

USB

(d) File names

(1) Only files with an extension of ".wav", ".flac", ".alac" and ".ogg" can be recognized and played as WAV, FLAC, ALAC or OGG Vorbis files.

(2) Save WAV, FLAC, ALAC or OGG Vorbis files with an extension of ".wav", ".flac", ".alac" and ".ogg".

NOTICE:

If non-WAV, non-FLAC, non-ALAC or non-OGG Vorbis files are saved with an extension of ".wav", ".flac", ".alac" or ".ogg", those files may be wrongly recognized as WAV, FLAC, ALAC or OGG Vorbis files and played. A loud noise may occur and damage to the speakers may result.

FILE INFORMATION OUTLINE

(a) Compatible compressed files

Item

USB

DISC

Compatible file format (audio)

MP3/WMA/AAC/WAV(LPCM)/FLAC/ALAC/OGG Vorbis

MP3/WMA/AAC

Compatible file format (video)

WMV/AVI/MP4/M4V

-

Folders in the device

Maximum 3000

Maximum 192

Files in the device

Maximum 9999

Maximum 255

Files per folder

Maximum 255

-

(b) Corresponding sampling frequency

File type

Frequency (kHz)

MP3 files: MPEG 1 LAYER 3

32/44.1/48

MP3 files: MPEG 2 LSFLAYER 3

16/22.05/24

WMA files: Ver. 7, 8, 9*1 (9.1/9.2)

32/44.1/48

AAC files: MPEG4/AAC-LC

11.025/12/16/22.05/24/32/44.1/48

WAV (LPCM) files*2

8/11.025/12/16/22.05/24/32/44.1/48/88.2/96/176.4/192

FLAC*2

8/11.025/12/16/22.05/24/32/44.1/48/88.2/96/176.4/192

ALAC*2

8/11.025/12/16/22.05/24/32/44.1/48/64/88.2/96

OGG Vorbis*2

8/11.025/16/22.05/32/44.1/48

  • *1: Only compatible with Windows Media Audio Standard.
  • *2: Sound source of 48 kHz or more is down-converted to 48 kHz/24 bit.

(c) Corresponding bit rates*1

File type

Bit rate (kbps)

MP3 files: MPEG 1 LAYER 3

32 - 320

MP3 files: MPEG 2 LSFLAYER 3

8 - 160

WMA files: Ver. 7, 8

CBR 48 - 192

WMA files: Ver. 9*2 (9.1/9.2)

CBR 48 - 320

AAC files: MPEG4/AAC-LC

8 - 320

OGG Vorbis

32-500

  • *1: Variable Bit Rate (VBR) compatible
  • *2: Only compatible with Windows Media Audio Standard

File type

Quantization bit rate (bit)

WAV (LPCM) files

16/24

FLAC

ALAC

(d) Compatible channel modes

File type

Channel mode

MP3 files

Stereo, joint stereo, dual channel and monaural

WMA files

2ch

AAC files

1ch, 2ch (Dual channel is not supported)

(e) ID3 tag, WMA tag, AAC tag, TAG and Vorbis comment

(1) Additional text information called an ID3 tag can be input to MP3 files. Information such as song titles and artist names can be stored.

HINT:

This player is compatible with ID3 tags of ID3 Ver. 1.0 and 1.1, and ID3 Ver. 2.2 and 2.3. (Number of characters complies with ID3 Ver. 1.0 and 1.1.)

(2) Additional text information called a WMA tag can be input to WMA files. Information such as song titles and artist names can be stored.

(3) Additional text information called an AAC tag can be input to AAC files. Information such as song titles and artist names can be stored.

(4) Additional text information called a tag can be input to WAV (LPCM), FLAC or ALAC files. Information such as song titles and artist names can be stored.

(5) Additional text information called a Vorbis comment can be input to OGG Vorbis files. Information such as song titles and artist names can be stored.

(f) Usable media

(1) Only CD-ROMs, CD-Rs (CD-Recordable), CD-RWs (CD-ReWritable), DVD-ROMs, DVD-Rs (DVD-Recordable), DVD-RWs (DVD-ReWritable) and USB devices can be used to play MP3/WMA/AAC files.

NOTICE:

  • CD-Rs, CD-RWs, DVD-Rs (DVD-Recordable) and DVD-RWs (DVD-ReWritable) are more easily affected by a hot and humid environment than discs used for normal audio CDs. For this reason, some CD-Rs and CD-RWs may not be played.
  • If there are fingerprints or scratches on a disc, the disc may not be played or the CD may skip.
  • Some CD-Rs, CD-RWs, DVD-Rs (DVD-Recordable) and DVD-RWs (DVD-ReWritable) may deteriorate if they are left in the cabin for a long time.
  • Keep CD-Rs, CD-RWs, DVD-Rs (DVD-Recordable) and DVD-RWs (DVD-ReWritable) in an opaque case.

(g) Usable media format

(1) Usable media format

Disc format

CD-ROM Mode 1, CD-ROM XA Mode 2 Form 1, DVD-ROM

File format

ISO9660 Level 1 and Level 2 (Joliet, Romeo)

HINT:

  • MP3/WMA/AAC files written in any unlisted format may not be played normally or the file names or folder names may not be displayed correctly.
  • This player is compatible with multi-session discs and can play CD-Rs, CD-RWs, DVD-Rs (DVD-Recordable) and DVD-RWs (DVD-ReWritable) on which MP3/WMA/AAC files have been added. However, only the first session can be played.
  • Discs whose first session includes both music data and MP3, WMA and AAC format data may not be played.

(2) Standards and restrictions

Maximum directory levels

8 levels

Maximum number of characters for a folder name/file name

32 characters

Maximum number of folders

192 (Including empty folders, root folders, and folders that do not contain MP3/WMA/AAC files)

Maximum number of files in a disc

255 (Including non-MP3/WMA/AAC files)

(h) File names

(1) Only files with an extension of ".mp3", ".wma", ".m4a", ".wav", ".flac", ".alac" and ".ogg" can be recognized and played as MP3, WMA, AAC, WAV (LPCM), FLAC, ALAC or OGG Vorbis files.

(2) Save MP3, WMA, AAC, WAV (LPCM), FLAC, ALAC or OGG Vorbis files with an extension of ".mp3", ".wma", ".m4a", ".wav", ".flac", ".alac" and ".ogg".

NOTICE:

If non-MP3, non-WMA, non-AAC, non-WAV (LPCM), non-FLAC, non-ALAC or non-OGG Vorbis files are saved with an extension of ".mp3", ".wma", ".m4a", ".wav", ".flac", ".alac" and ".ogg", those files may be wrongly recognized as MP3, WMA, AAC, WAV (LPCM), FLAC, ALAC or OGG Vorbis files and played. A loud noise may occur and damage to the speakers may result.

"Bluetooth" OUTLINE

*1

Cellular Phone ("Bluetooth" compatible type)

*2

Radio Receiver Assembly (Built-in "Bluetooth" receiver antenna)

*3

Portable Audio Player ("Bluetooth" compatible type)

-

-

*a

Example

*b

Cellular Network

*c

"Bluetooth" Wireless Connection

-

-

(a) "Bluetooth" is a trademark owned by Bluetooth SIG, Inc.

(b) "Bluetooth" is a wireless connection technology that uses the 2.4 GHz frequency band.

HINT:

The communication performance of "Bluetooth" may vary depending on obstructions or radio wave conditions between communication devices, electromagnetic radiation, communication device sensitivity or antenna capacity.

(c) Hands-free function

(1) The "Bluetooth" built-in radio receiver assembly and a "Bluetooth" compatible cellular phone* can be connected using a "Bluetooth" wireless connection. This enables the use of the hands-free function on the cellular phone even if the phone is in a pocket or bag. For this reason, it is not necessary to use a connector or cable to connect the cellular phone.

*: Some versions of "Bluetooth" compatible cellular phones may not function properly.

(2) The hands-free function uses a "Bluetooth" wireless connection. A "Bluetooth" wireless connection can be affected by uncertain elements, such as vehicle location, time of day, etc. Therefore, problems related to establishing connection may be caused temporarily by "Bluetooth" connection conditions. It is necessary to check the frequency of occurrence, connection conditions using another cellular phone, etc. when performing diagnosis.

(3) Compatible hands-free devices

Required "Bluetooth" specifications

Ver. 2.0 or higher (Ver. 4.2 or higher recommended)

Compatible profiles

  • HFP (Hands Free Profile) Ver. 1.0 or higher (Ver. 1.7 or higher recommended)*1
  • OPP (Object Push Profile) Ver. 1.1 or higher (Ver. 1.2 or higher recommended)*2
  • PBAP (Phone Book Access Profile) Ver. 1.0 or higher (Ver. 1.2 or higher recommended)*2
  • SPP (Serial Port Profile) Ver. 1.1 or higher (Ver. 1.2 or higher recommended)*3
  • MAP (Message Access Profile) Ver. 1.0 or higher (Ver. 1.2 or higher recommended)*4

Maximum number of hands-free devices that can be registered (including audio devices)

5

  • *1: This profile is necessary when using the hands-free function.
  • *2: This profile is necessary when transferring the phonebook data.
  • *3: This profile is necessary when using the LEXUS App Suite function.
  • *4: This profile is necessary when using the message function.

HINT:

"Bluetooth" compatible cellular phone can be checked at http:// www.lexus.com/Enform/.

(d) "Bluetooth" audio function

(1) The "Bluetooth" built-in radio receiver assembly and a "Bluetooth" compatible portable audio player* can be connected using a "Bluetooth" wireless connection. This enables files stored in the portable audio player to be heard from the vehicle speakers. In addition, operations such as play/stop can be performed directly from the radio receiver assembly.

*: Some versions of "Bluetooth" compatible audio players may not be able to be connected via the "Bluetooth" function, or music may play, but functions available using the radio receiver assembly may be limited.

(2) Compatible "Bluetooth" audio devices

Required "Bluetooth" specifications

Ver. 2.0 or higher (Ver. 4.2 or higher recommended)

Compatible profiles

  • A2DP (Advanced Audio Distribution Profile) Ver. 1.0 or higher (Ver. 1.3 or higher recommended)
  • AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher (Ver. 1.6 or higher recommended)

Maximum number of audio devices that can be registered (including hands-free devices)

5

HINT:

The amount of remaining battery charge displayed on the radio receiver assembly may be different from that of the "Bluetooth" device.

RADIO DESCRIPTION

(a) Radio frequency band

(1) Radio broadcasts use the radio frequency bands shown in the table below.

(b) Service area

(1) The service areas of AM and FM broadcasts are vastly different. Sometimes an AM broadcast can be received very clearly but an FM stereo broadcast cannot. FM stereo has the smallest service area, and is prone to pick up static and other types of interference such as noise.

*a

FM (Stereo)

*b

FM (Monaural)

*c

AM

(c) Radio reception problems

HINT:

In addition to static, other problems such as "phasing", "multipath" and "fade out" exist. These problems are not caused by electrical noise, but by the radio signal propagation method itself.

(1) Phasing

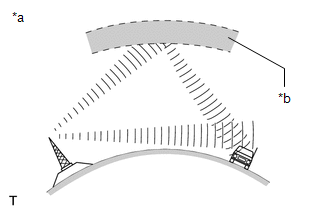

AM broadcasts are susceptible to electrical interference and another kind of interference called phasing. Occurring only at night, phasing is the interference created when a vehicle receives 2 radio wave signals from the same transmitter. One signal is reflected off the ionosphere and the other signal is received directly from the transmitter.

*a

Phasing

*b

Ionosphere

(2) Multipath

Multipath is a type of interference created when a vehicle receives 2 radio wave signals from the same transmitter. One signal is reflected off buildings or mountains and the other signal is received directly from the transmitter.

*a

Multipath

(3) Fade out

Fade out is caused by objects (buildings, mountains and other large obstructions) that deflect part of a signal, resulting in a weaker signal when the object is between the transmitter and vehicle. High frequency radio waves, such as FM broadcasts, are easily deflected by obstructions. Low frequency radio waves, such as AM broadcasts, are less likely to be deflected.

*a

Fade Out

(d) Noise problem

Technicians must have a clear understanding about each customer's noise complaint. Use the following table to diagnose noise problems.

Radio Frequency

Noise Occurrence Condition

Presumable Cause

AM

Noise occurs in a specific area

Foreign noise

Noise occurs when listening to an intermittent broadcast

An identical program transmitted from multiple towers can cause noise where the signals overlap

Noise occurs only at night

Signal phasing

FM

Noise occurs while driving in a specific area

Multipath resulting from a change in FM frequency

VEHICLE CUSTOMIZATION OUTLINE

(a) Customization of functions can also be customized on the multi-display assembly screen. Refer to the Owner's Manual for further information on customizable items for the navigation system.

HINT:

  • Items available for customization via the navigation system can also be customized by using the Techstream.
  • Some customize parameters displayed on the Techstream will be displayed on the "Vehicle Customization" screen for the navigation system. Users can customize these items.

"HD Radio" FUNCTION OUTLINE

(a) The "HD Radio" system is a radio system that broadcasts in the IBOC (In-Band On-Channel) form that the DTS and Ibiquity Co. have developed. By expanding the bandwidth per channel of conventional FM/AM bands, digital audio and data signals are additionally transmitted. "HD Radio" technology is manufactured under license from DTS and Ibiquity Digital Corporation. U.S. and Foreign Patents. "HD Radio" and the HD and HD Radio logos are proprietary trademarks of DTS and Ibiquity Digital Corporation. Also, traffic and weather information can be received and displayed on the navigation screen.

RBDS FUNCTION OUTLINE (w/ RBDS Function)

(a) The Radio Broadcast Data System (RBDS) is broadcast through conventional FM radio broadcasts. Information such as song names, traffic information, broadcast station names, etc. can be received.

SIRIUS XM SYSTEM FUNCTION OUTLINE (w/ SXM System)

(a) Sirius XM (SXM) satellite radio is a satellite digital radio broadcast provided by Sirius XM Satellite Radio Inc. The broadcast (pay-type) is performed through satellites and terrestrial repeater networks. Several unique channels are available, and even if a vehicle changes locations, the same information can be received without breaks. Information such as song names, broadcast station names, etc. can be received.

NOTICE:

To receive audio-visual pay-type broadcasts, the customer must enter into a pay-type contract with Sirius XM Satellite Radio Inc. After entering into a contract, registration of the Radio ID is necessary. Also, if parts are replaced, the Radio ID must be re-registered.

HINT:

When disconnecting the cable from the negative (-) auxiliary battery terminal, the broadcast station logo data will be initialized. It takes a while for the broadcast station logo data to be updated to the latest one.

EXPORT / IMPORT MEMORY POINT FUNCTION OUTLINE

(a) This function allows memory points stored in the radio receiver assembly to be registered to another radio receiver assembly. Memory points stored in the radio receiver assembly can be exported to a USB device. Data exported to a USB device can be imported to another radio receiver assembly using a USB device.

AUTOMATIC SOUND LEVELIZER (ASL) FUNCTION OUTLINE

(a) The Automatic Sound Levelizer (ASL) function automatically adjusts the audio system volume level in order to compensate for increased vehicle noise (vehicle noise tends to increase as vehicle speed increases). The ASL adjusts the volume level based upon vehicle speed signals that it receives from the combination meter assembly.

DYNAMIC VOICE RECOGNITION FUNCTION OUTLINE (w/ Dynamic Voice Recognition Function)

(a) There are two types of voice recognition; the voice recognition function uses voice recognition data stored in the onboard device. The other is communication based and uses voice recognition data sent from communication with the DCM (telematics transceiver) as audio signals to be stored at the center.

HINT:

Refer to the Lexus Enform system for information about communication based voice recognition.

Click here

"Wi-Fi" hotspot OUTLINE (w/ "Wi-Fi" hotspot Function)

HINT:

  • To use the "Wi-Fi" hotspot function, initial setup of the LEXUS App Suite function is necessary.
  • To perform initial setup, refer to http://www.lexus.com/Enform/.

(a) "Wi-Fi" is a worldwide wireless communication standard widely used as a short range communication tool.

(b) "Wi-Fi" is a registered trademark owned by Wi-Fi Alliance, a non-profit industry association.

(c) The radio receiver assembly uses the 2.4 GHz frequency band for "Wi-Fi" communication.

HINT:

The communication performance of "Wi-Fi" may vary depending on obstructions or radio wave conditions between communication devices, electromagnetic radiation, communication device sensitivity or antenna capacity.

DYNAMIC NAVIGATION FUNCTION OUTLINE (w/ Dynamic Navigation Function)

(a) The dynamic navigation function is a function that provides more convenient route guidance by using communication from the DCM (telematics transceiver), the travel history data accumulated in the server, the latest traffic information, and map information via temporary map distribution in addition to the route guidance function built into the head unit.

HINT:

Refer to the Lexus Enform system for information about the communication function.

Click here

"Apple CarPlay" FUNCTION OUTLINE

(a) The "Apple CarPlay" function is a function that enables the head unit to operate applications on a smartphone by connecting the smartphone to the head unit using a dedicated cable.

HINT:

  • Refer to the owner's manual included with the device for information about "Apple CarPlay" support.
  • Some applications have a display restriction in consideration of safe driving.

"Android Auto" FUNCTION OUTLINE

(a) The "Android Auto" function is a function that enables the radio receiver assembly to operate applications on a smartphone by connecting the smartphone to the radio receiver assembly using a dedicated cable.

HINT:

Some applications have a display restriction in consideration of safe driving.

eOwner's MANUAL FUNCTION OUTLINE

(a) The eOwner's Manual can be used by installing it to the radio receiver assembly.

HINT:

Re-install the eOwner's Manual when replacing the radio receiver assembly.

DIAGNOSTIC FUNCTION OUTLINE

(a) The navigation system has a diagnostic function (the result is indicated on the master unit).

COMMUNICATION SYSTEM

(a) MOST Network Outline

(1) Navigation system components communicate with each other via the MOST network.

(2) The MOST network uses a shielded twisted pair of wires for its communication lines.

(3) The master unit of the MOST network is the radio receiver assembly.

(4) MOST communication lines connect each slave unit centering around the master unit to form a MOST network ring.

(5) The master unit sends a wake-up signal to activate each slave unit connected to the MOST network.

HINT:

If a short or open circuit occurs in the MOST circuit, communication will be interrupted and the system will not operate normally.

(b) AVC-LAN Outline

(1) Components of the navigation system communicate with each other via the AVC-LAN.

(2) The AVC-LAN uses a twisted pair of wires for its communication lines.

(3) The master unit of the AVC-LAN is the radio receiver assembly.

HINT:

  • The radio receiver assembly has the resistance (60 to 80 Ω) necessary for communication.
  • If a short or open circuit occurs in the AVC-LAN circuit, communication is interrupted and the system will not operate normally.

(c) Local Bus Communication Outline

(1) Components of the navigation system communicate with each other via the local bus.

(2) The local bus uses a twisted pair of wires for its communication lines.

(3) The master unit of the local bus is the radio receiver assembly.

HINT:

  • The radio receiver assembly has the resistance (108 to 132 Ω) necessary for communication.
  • The remote operation controller assembly (remote touch) has the resistance (108 to 132 Ω) necessary for communication.
  • If a short or open occurs in the local bus circuit, communication is interrupted and the system will not operate normally.

(d) CAN Communication Outline

(1) The navigation system uses CAN communication between the radio receiver assembly and ECUs.

TOUCH FUNCTION CANCELLATION FUNCTION OUTLINE

(a) Touch function cancellation function

(1) The touch function cancellation function disables touchpad operation of the remote touch, if it is not operated for 12 seconds or more.

Click here

HINT:

  • Touchpad operation of the remote touch can be resumed if any of the following conditions are met:
    • The "MAP", "MENU", "BACK" or "Sub-function" switch of the remote touch is pressed.
    • A finger is slid from one side of the touchpad to the other.
  • When the touchpad operation of the remote touch is disabled and the navigation screen is being displayed, pressing the back switch does not change the display (the first switch operation will be ignored by the navigation system) until touchpad operation resumes.
  • When the handwriting input method is being used, it is necessary to enter the next stroke within 12 seconds as touchpad operation will be disabled if the touchpad is not operated for 12 seconds or more.

    (The first touchpad operation to resume operation may also be detected as handwriting input, possibly resulting in a typographical error.)

READ NEXT:

 How To Proceed With Troubleshooting

CAUTION / NOTICE / HINT HINT: Use the following procedure to troubleshoot the navigation system. *: Use the Techstream. PROCEDURE 1. VEHICLE BROUGHT TO WORKSHOP NEXT

 Operation Check

OPERATION CHECK CHECK NAVIGATION SYSTEM NORMAL CONDITION (a) If the cause of a symptom is any of the following, the corresponding symptom is normal; it is not a malfunction. Symptom Answer A

 Customize Parameters

CUSTOMIZE PARAMETERS CUSTOMIZING WITH MULTI-DISPLAY ASSEMBLY (a) Turn the power switch on (IG). (b) Using the multi-display assembly, select "Setup", "General", and then feedback force and change the

SEE MORE:

 Removal

REMOVAL CAUTION / NOTICE / HINT HINT: Use the same procedure for the RH and LH sides. The procedure listed below is for the LH side. PROCEDURE 1. PRECAUTION NOTICE: After the power switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery termi

 Fail-safe Chart

FAIL-SAFE CHART FAIL-SAFE FUNCTION OF CONTROL SYSTEM (a) When a malfunction is detected in the brake control system, the skid control ECU (brake booster with master cylinder assembly) turns the ABS warning, brake warning / red (malfunction), brake warning / yellow (minor malfunction) and slip indica

© 2016-2024 Copyright www.lexunx.com
