Lexus NX: Brake Hold

The brake hold system keeps the brake applied when the shift lever is in D, S or N with the system on and the brake pedal has been depressed to stop the vehicle. The system releases the brake when the accelerator pedal is depressed with the shift lever in D or S to allow smooth start off.

Enabling the system

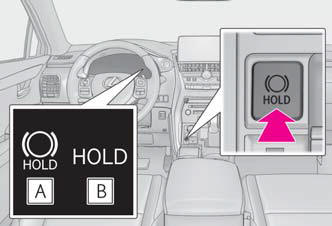

Turns the brake hold system on The brake hold standby indicator A (green) comes on. While the system is holding the brake, the brake hold operated indicator B (yellow) comes on.

Lexus NX. Driving procedures

■Brake hold system operating conditions The brake hold system cannot be turned on in the following conditions:

If any of the conditions above are detected when the brake hold system is enabled, the system will turn off and the brake hold standby indicator light will go off. In addition, if any of the conditions are detected while the system is holding the brake, a warning buzzer will sound and a message will be shown on the multi-information display.

The parking brake will then be set automatically.

■Brake hold function

■When the parking brake is set automatically while the system is holding the brakes With the brake pedal depressed, release the parking brake by operating the parking brake switch, making sure that the parking brake indicator light goes off.

■When an inspection at your Lexus dealer is necessary When the brake hold standby indicator (green) does not illuminate even when the brake hold switch is pressed with the brake hold system operating conditions met, the system may be malfunctioning. Have the vehicle inspected at your Lexus dealer.

■If "Brake Hold Fault Depress Brake to Deactivate Visit Your Dealer" is displayed on the multi-information display The system may be malfunctioning. Have the vehicle inspected by your Lexus dealer.

■Warning messages and buzzers Warning messages and buzzers are used to indicate a system malfunction or to inform the driver of the need for caution. If a warning message is shown on the multi-information display, read the message and follow the instructions.


■When the vehicle is on a steep incline When using the brake hold system on a steep incline, exercise caution. The brake hold function may not hold the vehicle in such a situation.

■When stopped on a slippery road The system cannot stop the vehicle when the gripping ability of the tires has been exceeded. Do not use the system when stopped on a slippery road.


■When parking the vehicle The brake hold system is not designed for use when parking the vehicle for a long period of time. Turning the power switch off while the system is holding the brake may release the brake, which would cause the vehicle to move. When operating the power switch, depress the brake pedal, shift the shift lever to P and set the parking brake.

ASC (Active Sound Control)

The ASC system is an electronic sound system that generates engine sound, conveying the kinetic situations of the vehicle's acceleration and deceleration to the driver through the speakers inside the instrument panel.

The vehicle's response to the driver's acceleration behavior and shift operations are also conveyed in sound.

When Sport mode is selected, the sound conveyed to the driver will be louder.

Controlling volume

Lexus NX. Driving procedures

  1. Louder
  2. Lower

The indicator comes on when the ASC system is on.

When the dial is turned to the lowest volume, the ASC system will be turned off and the indicator will go off.

■Operating conditions When the driving mode select switch is not in Eco mode or EV drive mode.

■Temporary cancelation of the ASC system functions The ASC system may be temporarily canceled depending on the driving conditions, such as when the tires slip due to sudden acceleration.


 Operating the lights and wipers

 Headlight switch

The headlights can be operated manually or automatically. Operating the switch turns on the lights as follows: Type A The side marker, parking, tail, license plate, instrument panel

 Automatic High Beam

The Automatic High Beam uses an in-vehicle camera sensor to assess the brightness of streetlights, the lights of oncoming and preceding vehicles, etc., and automatically turns high beam on or off


 Hazard Warning Switch Circuit

DESCRIPTION When the combination meter receives a hazard warning signal switch signal, the flasher IC turns on and hazard control is performed. WIRING DIAGRAM CAUTION / NOTICE / HINT NOTICE: When replacing the combination meter assembly, make sure to replace it with a new one. PROCEDURE 1. RE


INSTALLATION PROCEDURE 1. INSTALL STEERING PAD SWITCH ASSEMBLY (a) Engage the 4 claws and 3 guide pins to install the steering pad switch assembly to the steering wheel sub-assembly. (b) Install the 2 screws. (c) Connect the steering pad switch connector to the No. 1 switch wire. (d) Connect the ste
