Lexus NX: Components
Lexus NX Service Manual / Vehicle Interior / Supplemental Restraint Systems / Steering Pad / Components
COMPONENTS

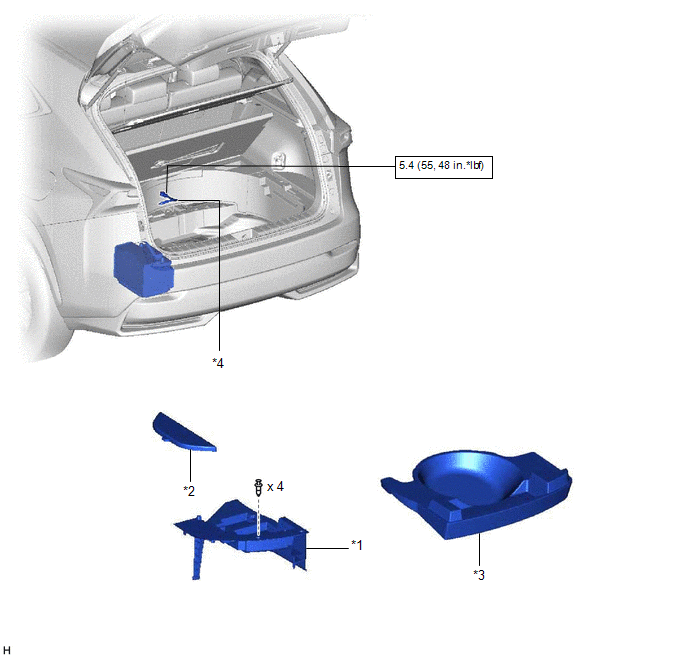

ILLUSTRATION
.png)
| *1 | DECK FLOOR BOX LH | *2 | NO. 3 DECK BOARD SUB-ASSEMBLY |
| *3 | REAR DECK FLOOR BOX | *4 | AUXILIARY BATTERY NEGATIVE TERMINAL |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *1 | LOWER NO. 2 STEERING WHEEL COVER | *2 | LOWER NO. 3 STEERING WHEEL COVER |
| *3 | STEERING PAD ASSEMBLY | - | - |
