Lexus NX: Components
COMPONENTS
ILLUSTRATION
| *1 | NAVIGATION ANTENNA ASSEMBLY WITH BRACKET | *2 | NO. 1 HEATER TO REGISTER DUCT SUB-ASSEMBLY |
| *3 | UPPER INSTRUMENT PANEL SUB-ASSEMBLY | - | - |

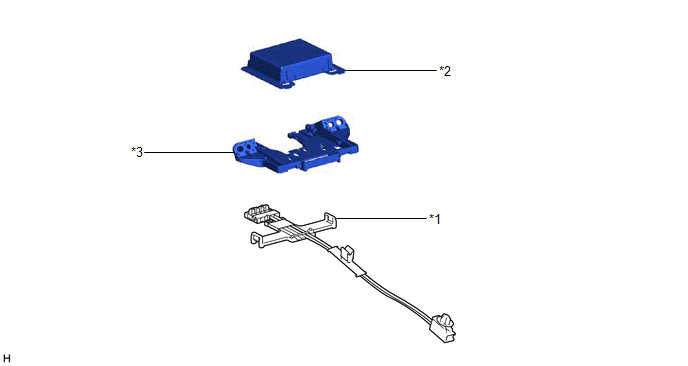

ILLUSTRATION
| *1 | ANTENNA CORD SUB-ASSEMBLY | *2 | NAVIGATION ANTENNA ASSEMBLY |
| *3 | NAVIGATION ANTENNA BRACKET | - | - |
