Lexus NX: Installation
INSTALLATION
PROCEDURE
1. INSTALL BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

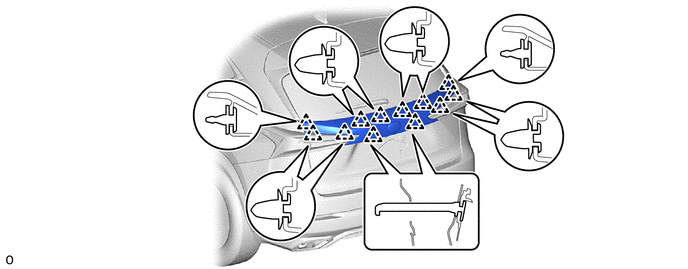

(a) Attach the 12 clips to install the back door outside garnish sub-assembly.
.png)

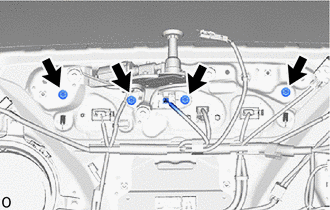

| (b) Install the 4 bolts. Torque: 5.0 N·m {51 kgf·cm, 44 in·lbf} |
|
.png)
2. INSTALL BACK DOOR TRIM BOARD ASSEMBLY
Click here .gif)
3. INSTALL BACK DOOR LOCK COVER (w/ Power Back Door)
Click here
4. INSTALL BACK DOOR LOCK COVER (w/o Power Back Door)
Click here
5. INSTALL BACK DOOR FINISH COVER LH (w/o Power Back Door)
Click here
6. INSTALL BACK DOOR FINISH COVER RH (w/o Power Back Door)
Click here
7. INSTALL BACK DOOR TRIM BASE (w/ Power Back Door)
Click here
8. INSTALL PULL HANDLE (w/ Power Back Door)
Click here
9. INSTALL BACK DOOR SIDE GARNISH LH
Click here
10. INSTALL BACK DOOR SIDE GARNISH RH
Click here
11. INSTALL BACK DOOR CENTER GARNISH
Click here
