Lexus NX: Power windows
Opening and closing the power
windows
The power windows can be opened
and closed by a one-touch operation of
the switches.
- Closing
- One-touch closing*
- Opening
- One-touch opening*
*: To stop the window partway, operate the
switch in the opposite direction.
■The power windows can be operated
when
The power switch is in ON mode.
■Operating the power windows after
turning the hybrid system off
The power windows can be operated for
approximately 45 seconds even after the
power switch is turned to ACCESSORY
mode or turned off. They cannot, however,
be operated once either front door is
opened.
■Jam protection function
If an object becomes jammed between the
window and the window frame while the
window is closing, window movement is
stopped and the window is opened slightly.
■Catch protection function
If an object becomes caught between the
door and window while the window is opening,
window movement is stopped.
■When the window cannot be opened or
closed
When the jam protection function or catch
protection function operates unusually and
the door window cannot be opened or
closed, perform the following operations
with the power window switch of that door.
- Stop the vehicle. With the power switch in
ON mode, within 4 seconds of the jam
protection function or catch protection
function activating, continuously operate
the power window switch in the one-touch
closing direction or one-touch
opening direction so that the door window
can be opened and closed.
- If the door window cannot be opened
and closed even when performing the
above operations, perform the following
procedure for function initialization.
1. Turn the power switch to ON mode.
2. Pull and hold the power window switch
in the one-touch closing direction and
completely close the door window.
3. Release the power window switch for a
moment, resume pulling the switch in
the one-touch closing direction, and
hold it there for approximately 6 seconds
or more.
4. Press and hold the power window
switch in the one-touch opening direction.
After the door window is completely
opened, continue holding the
switch fan additional 1 second or more.
5. Release the power window switch for a
moment, resume pushing the switch in
the one-touch opening direction, and
hold it there for approximately 4 seconds
or more.
6. Pull and hold the power window switch
in the one-touch closing direction
again. After the door window is completely
closed, continue holding the
switch for a further 1 second or more.
If you release the switch while the window is
moving, start again from the beginning.
If the window reverses and cannot be fully closed or opened, have the vehicle
inspected by your Lexus dealer.
■Door lock linked window operation
- The power windows can be opened and
closed using the mechanical key.*
- The power windows can be opened using
the wireless remote control.*
*: These settings must be customized at
your Lexus dealer.
■Power windows open warning buzzer
The buzzer sounds and a message is shown
on the multi-information display in the
instrument cluster when the power switch is
turned off and the driver's door is opened
with the power windows open.
■Customization
Setting (e.g. linked door lock operation) can
be changed.
WARNING
Observe the following precautions.
Failure to do so may result in death or
serious injury.
■Closing the windows
- The driver is responsible for all the
power window operations, including
the operation for the passengers. In
order to prevent accidental operation,
especially by a child, do not let a child
operate the power windows. It is possible
for children and other passengers
to have body parts caught in the power
window. Also, when riding with a child,
it is recommended to use the window
lock switch.
- Check to make sure that all passengers
do not have any part of their body
in a position where it could be caught
when a window is being operated.
- When using the wireless remote control
or mechanical key and operating
the power windows, operate the
power window after checking to make
sure that there is no possibility of any
passenger having any of their body
parts caught in the window. Also do
not let a child operate window by the
mechanical key. It is possible for children
and other passengers to get
caught in the power window.
- When exiting the vehicle, turn the
power switch off, carry the key and exit
the vehicle along with the child. There
may be accidental operation, due to
mischief, etc., that may possibly lead to
an accident.
■Jam protection function
- Never use any part of your body to
intentionally activate the jam protection
function.
- The jam protection function may not
work if something gets jammed just
before the window is fully closed. Be
careful not to get any part of your body
jammed in the window.
■Catch protection function
- Never use any part of your body or
clothing to intentionally activate the
catch protection function.
- The catch protection function may not
work if something gets caught just
before the window is fully opened. Be
careful not to get any part of your body
or clothing caught in the window.

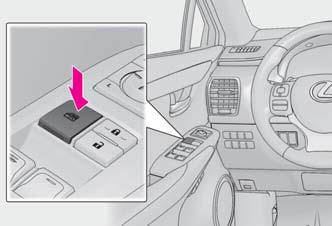

Preventing accidental operation
(window lock switch)
This function is designed to prevent
children from accidentally opening or
closing a passenger window.
Press the switch down to lock the passenger
window.
