Lexus NX: PBD Touch Sensor RH Circuit (B222B)
DESCRIPTION
This DTC is output when the multiplex network door ECU detects a power back door sensor assembly RH touch sensor malfunction.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area |
|---|---|---|---|
| B222B | PBD Touch Sensor RH Circuit | Multiplex network door ECU detects power back door sensor assembly RH touch sensor malfunction |
|

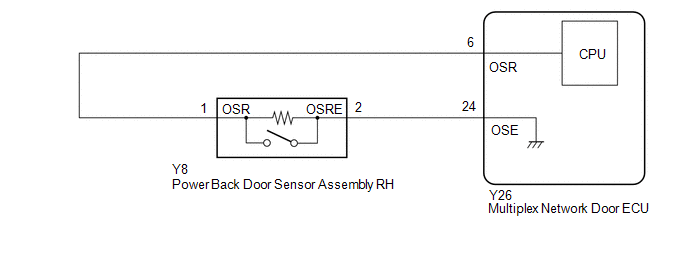

WIRING DIAGRAM
CAUTION / NOTICE / HINT
NOTICE:
If the replacement, removal and installation of the multiplex network door ECU or disconnection of the connectors of the multiplex network door ECU has been performed, initialize the power back door system.
Click here .gif)
PROCEDURE
| 1. | CHECK FOR DTC |
(a) Clear the DTCs.
Click here
(b) Check for DTCs.
Click here
OK:
DTC B222B is not output
| OK | .gif) | USE SIMULATION METHOD TO CHECK |
|
.gif)
| 2. | READ VALUE USING TECHSTREAM |
(a) Read the Data List according to the display on the Techstream.
Click here
| Tester Display | Measurement Item | Range | Normal Condition | Diagnostic Note |
|---|---|---|---|---|
| PBD Touch Sensor (Right) | Power back door sensor assembly RH signal | ON, OFF or Open | ON: Power back door sensor assembly RH pressed OFF: Power back door sensor assembly RH not pressed Open: Power back door sensor assembly RH circuit open | - |
| Tester Display |
|---|
| PBD Touch Sensor (Right) |
| Result | Proceed to |
|---|---|
| On the Techstream screen, ON or OFF is displayed accordingly | A |
| On the Techstream screen, ON or OFF is not displayed accordingly or Open is displayed for power back door sensor assembly RH | B |
| A | | REPLACE MULTIPLEX NETWORK DOOR ECU |
|
| 3. | INSPECT POWER BACK DOOR SENSOR ASSEMBLY RH |
(a) Remove the power back door sensor assembly RH.
Click here
(b) Inspect the power back door sensor assembly RH.
Click here
| NG | | REPLACE POWER BACK DOOR SENSOR ASSEMBLY RH |
|
| 4. | CHECK HARNESS AND CONNECTOR (MULTIPLEX NETWORK DOOR ECU - POWER BACK DOOR SENSOR ASSEMBLY RH) |
(a) Disconnect the Y26 multiplex network door ECU connector.
(b) Disconnect the Y8 power back door sensor assembly RH connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| Y26-6 (OSR) - Y8-1 (OSR) | Always | Below 1 Ω |
| Y26-24 (OSE) - Y8-2 (OSRE) | Always | Below 1 Ω |
| Y26-6 (OSR) or Y8-1 (OSR) - Body ground | Always | 10 kΩ or higher |
| Y26-24 (OSE) or Y8-2 (OSRE) - Body ground | Always | 10 kΩ or higher |
| OK | | REPLACE MULTIPLEX NETWORK DOOR ECU |
| NG | | REPAIR OR REPLACE HARNESS OR CONNECTOR |
