Lexus NX: Removal
REMOVAL
CAUTION / NOTICE / HINT
CAUTION:
Wear protective gloves. Sharp areas on the parts may injure your hands.
HINT:
- Use the same procedure for the RH and LH sides.
- The procedure listed below is for the LH side.
PROCEDURE
1. REMOVE FRONT SEAT ASSEMBLY LH
Click here .gif)
2. REMOVE FRONT SEAT INNER BELT ASSEMBLY LH (for Driver Side)
Click here
3. REMOVE FRONT SEAT INNER BELT ASSEMBLY RH (for Front Passenger Side)
Click here
4. REMOVE FRONT LOWER SEAT CUSHION SHIELD
Click here
5. REMOVE FRONT SEAT CUSHION SHIELD LH
Click here
6. REMOVE FRONT INNER SEAT CUSHION SHIELD LH
Click here
7. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD LH
Click here
8. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER LH

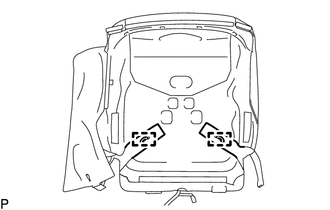

| (a) Remove the 2 hog rings. |
|
.png)
| (b) Remove the 14 hog rings. |
|
.png)
| (c) Slide the seat cover wire. HINT: Use the same procedure for both seat cover wires. |
|
.png)
| (d) Remove the 4 hog rings to remove the separate type front seat cushion cover LH from the separate type front seat cushion pad LH. |
|
.png)
