Lexus NX: Components
COMPONENTS

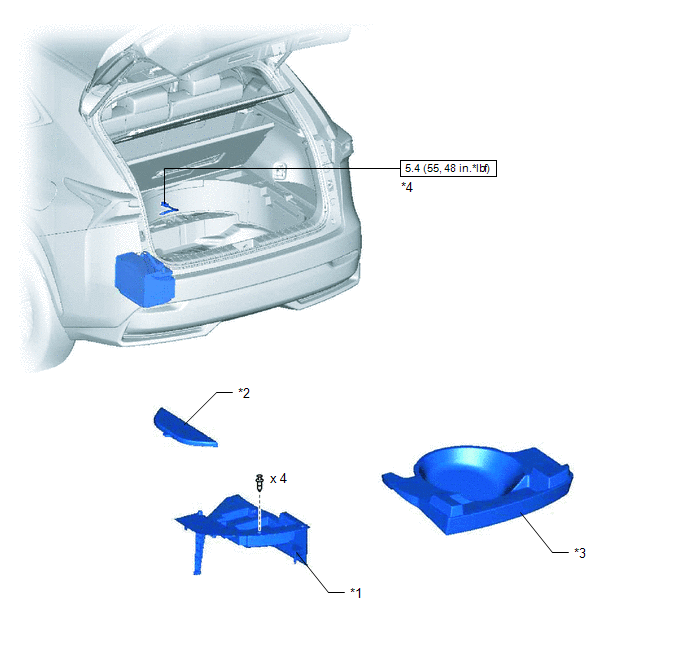

ILLUSTRATION
| *1 | DECK FLOOR BOX LH | *2 | NO. 3 DECK BOARD SUB-ASSEMBLY |
| *3 | REAR DECK FLOOR BOX | *4 | NEGATIVE AUXILIARY BATTERY TERMINAL |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

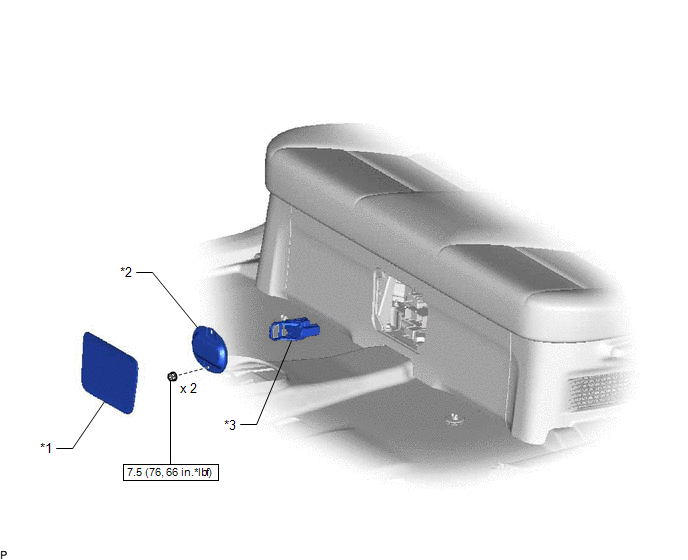

ILLUSTRATION
| *1 | BATTERY SERVICE HOLE COVER | *2 | HYBRID BATTERY SERVICE PLUG COVER |
| *3 | SERVICE PLUG GRIP | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

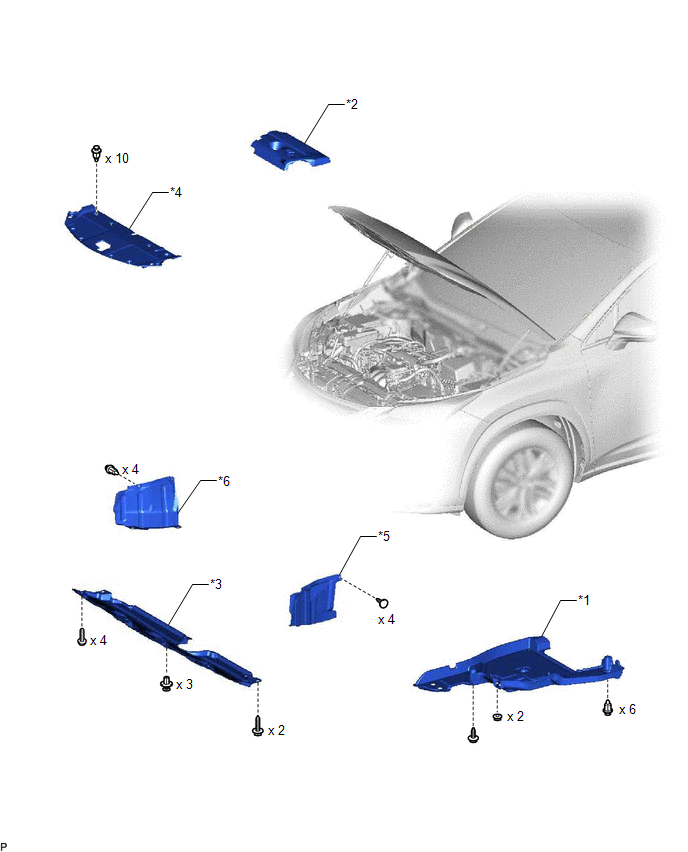

ILLUSTRATION
| *1 | FRONT FLOOR COVER CENTER LH | *2 | NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *3 | NO. 1 ENGINE UNDER COVER ASSEMBLY | *4 | RADIATOR SUPPORT OPENING COVER |
| *5 | REAR ENGINE UNDER COVER LH | *6 | REAR ENGINE UNDER COVER RH |
ILLUSTRATION
| *1 | AIR CLEANER CAP SUB-ASSEMBLY | *2 | AIR CLEANER CASE SUB-ASSEMBLY |
| *3 | AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY | *4 | DISCHARGE HOSE SUB-ASSEMBLY |
| *5 | ECM | *6 | FAN AND GENERATOR V BELT |
| *7 | HEATER WATER INLET HOSE | *8 | HEATER WATER OUTLET HOSE |
| *9 | NO. 1 RADIATOR HOSE | *10 | NO. 2 RADIATOR HOSE |
| *11 | RADIATOR HOSE HOSE CLAMP | *12 | RADIATOR RESERVE TANK ASSEMBLY |
| *13 | SUCTION HOSE SUB-ASSEMBLY | *14 | NO. 2 FUEL VAPOR FEED HOSE |
| *15 | FUEL VAPOR FEED HOSE | *16 | O-RING |
| *17 | WIRE HARNESS | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
.png) | Compressor oil ND-OIL 11 or equivalent | - | - |

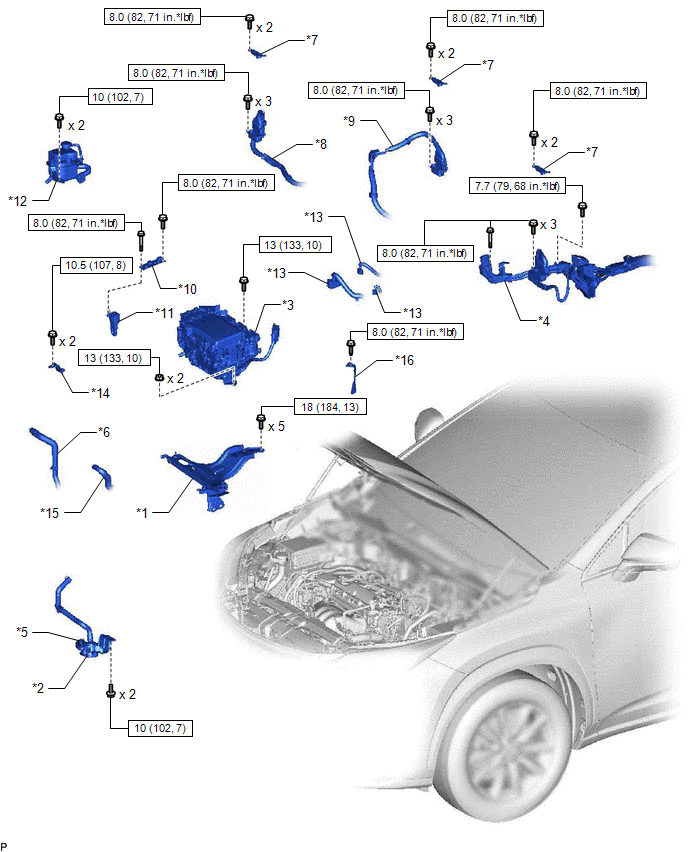

ILLUSTRATION
| *1 | INVERTER BRACKET ASSEMBLY | *2 | INVERTER WATER PUMP WITH MOTOR ASSEMBLY |
| *3 | INVERTER WITH CONVERTER ASSEMBLY | *4 | NO. 2 FLOOR WIRE |
| *5 | NO. 3 INVERTER COOLING HOSE | *6 | NO. 5 INVERTER COOLING HOSE |
| *7 | INVERTER COVER | *8 | MOTOR CABLE |
| *9 | GENERATOR CABLE | *10 | CONNECTOR COVER ASSEMBLY |
| *11 | ENGINE WIRE | *12 | INVERTER RESERVE TANK ASSEMBLY |
| *13 | LOW VOLTAGE CONNECTOR | *14 | NO. 6 INVERTER BRACKET |
| *15 | NO. 2 INVERTER COOLING HOSE ASSEMBLY | *16 | INVERTER PROTECTOR |
| | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

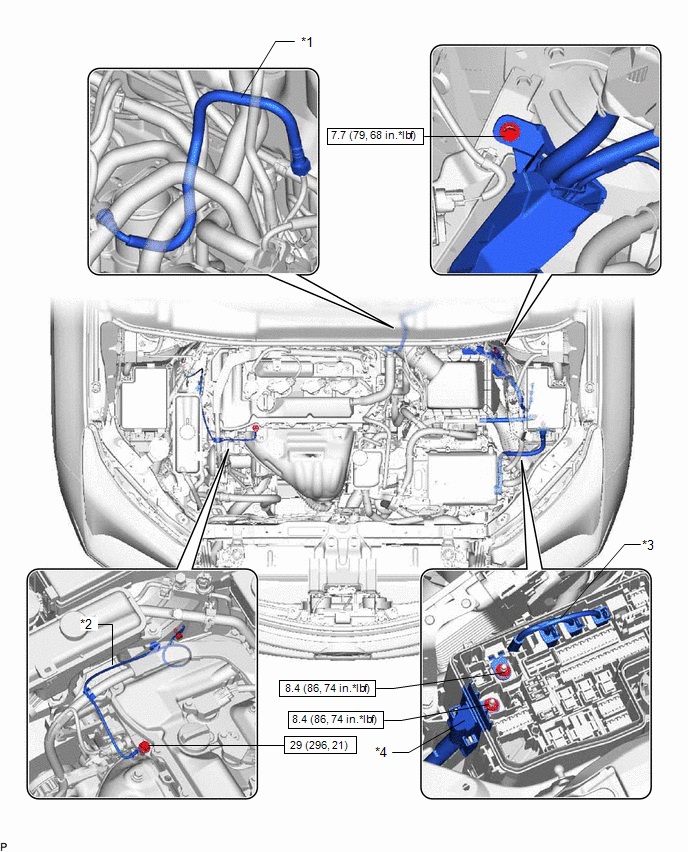

ILLUSTRATION
| *1 | FUEL TUBE SUB-ASSEMBLY | *2 | GROUND WIRE |
| *3 | WIRE HARNESS | *4 | NO. 3 ENGINE ROOM WIRE |
| | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

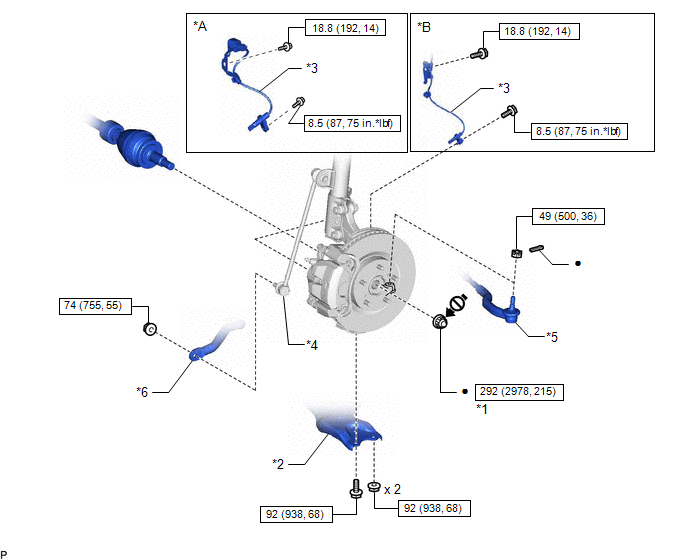

ILLUSTRATION
| *A | w/ AVS | *B | w/o AVS |
| *1 | FRONT AXLE SHAFT NUT LH | *2 | FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH |
| *3 | FRONT SPEED SENSOR LH | *4 | FRONT STABILIZER LINK ASSEMBLY LH |
| *5 | TIE ROD END SUB-ASSEMBLY LH | *6 | FRONT STABILIZER BAR |
| | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 | Do not apply lubricants to the threads | - | - |

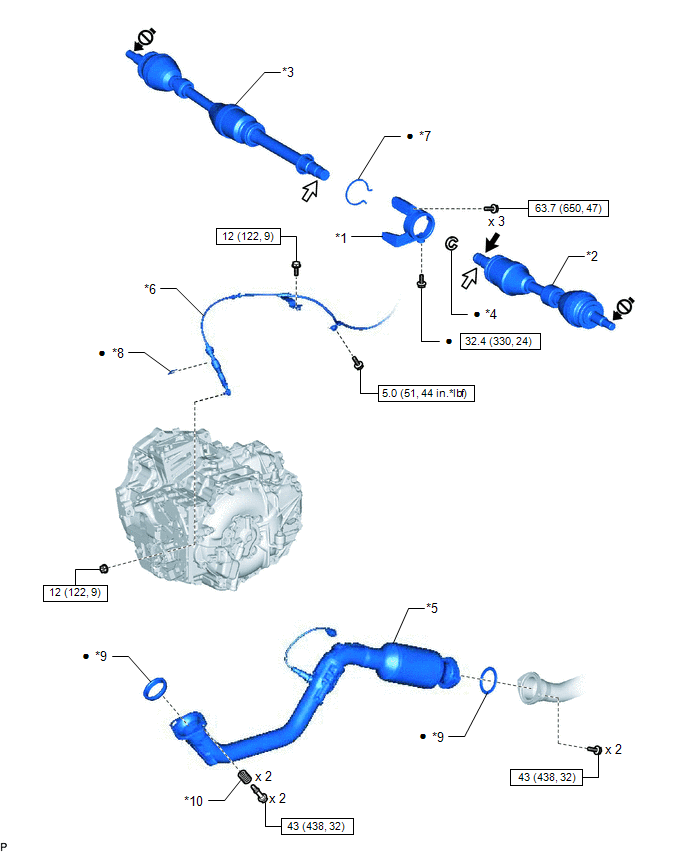

ILLUSTRATION
| *1 | DRIVE SHAFT BEARING BRACKET | *2 | FRONT DRIVE SHAFT ASSEMBLY LH |
| *3 | FRONT DRIVE SHAFT ASSEMBLY RH | *4 | FRONT DRIVE SHAFT HOLE SNAP RING LH |
| *5 | FRONT EXHAUST PIPE SUB-ASSEMBLY | *6 | TRANSMISSION CONTROL CABLE ASSEMBLY |
| *7 | DRIVE SHAFT BEARING BRACKET HOLE SNAP RING | *8 | CLIP |
| *9 | GASKET | *10 | COMPRESSION SPRING |
| | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| | MP grease | .png) | Toyota Genuine ATF WS |
| | Do not apply lubricants to the threads | - | - |

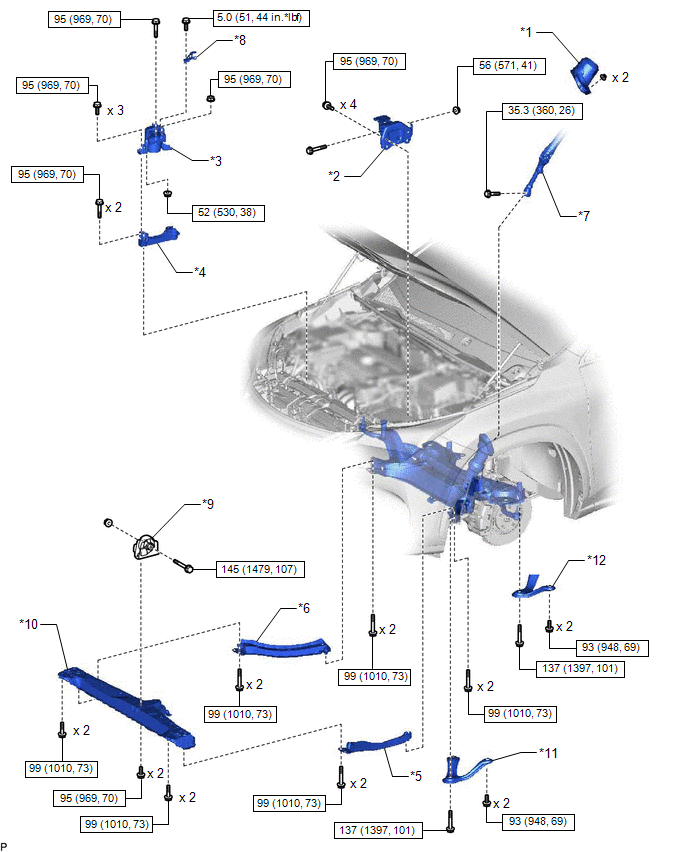

ILLUSTRATION
| *1 | COLUMN HOLE COVER SILENCER SHEET | *2 | ENGINE MOUNTING INSULATOR LH |
| *3 | ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH | *4 | ENGINE MOUNTING SPACER |
| *5 | FRONT SUSPENSION MEMBER REINFORCEMENT LH | *6 | FRONT SUSPENSION MEMBER REINFORCEMENT RH |
| *7 | NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY | *8 | RADIATOR RESERVOIR TANK BRACKET |
| *9 | FRONT ENGINE MOUNTING INSULATOR | *10 | FRONT CROSSMEMBER SUB-ASSEMBLY |
| *11 | FRONT SUSPENSION MEMBER REAR BRACE RH | *12 | FRONT SUSPENSION MEMBER REAR BRACE LH |
| | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

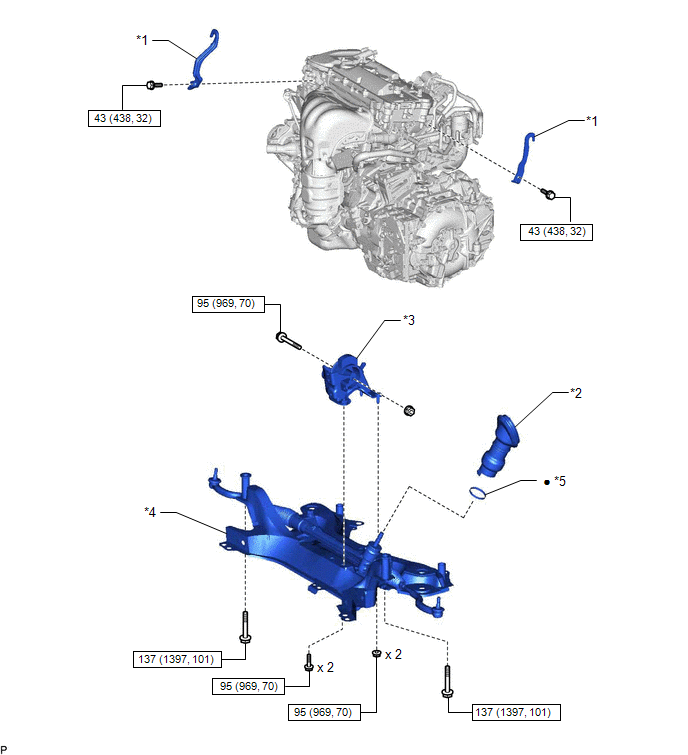

ILLUSTRATION
| *1 | ENGINE HANGER | *2 | NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY |
| *3 | REAR ENGINE MOUNTING INSULATOR | *4 | FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY |
| *5 | CLAMP | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

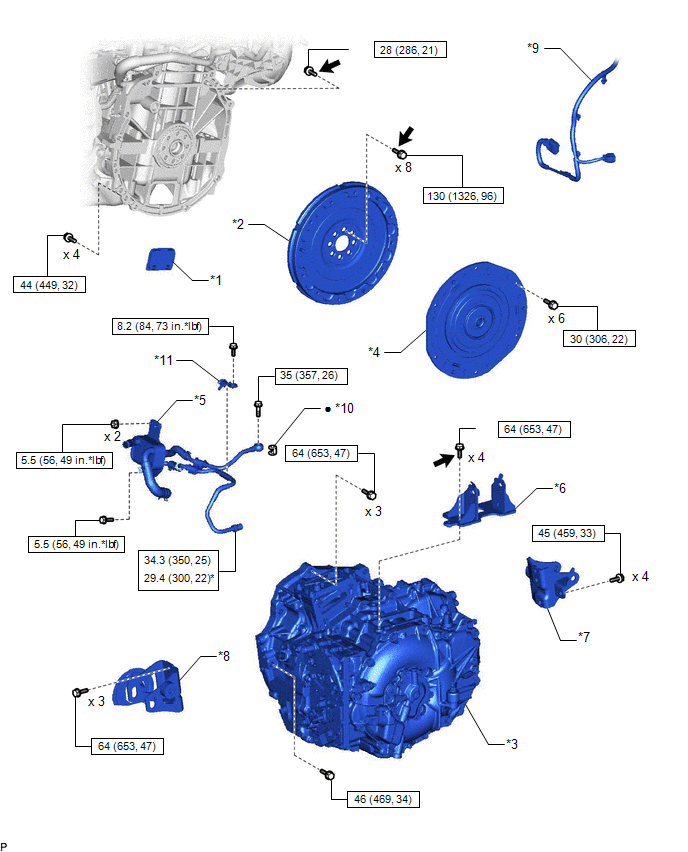

ILLUSTRATION
| *1 | FLYWHEEL HOUSING UNDER COVER | *2 | FLYWHEEL SUB-ASSEMBLY |
| *3 | HYBRID VEHICLE TRANSAXLE ASSEMBLY | *4 | TRANSMISSION INPUT DAMPER ASSEMBLY |
| *5 | TRANSMISSION OIL COOLER ASSEMBLY | *6 | ENGINE MOUNTING BRACKET LH |
| *7 | REAR ENGINE MOUNTING BRACKET | *8 | FRONT ENGINE MOUNTING BRACKET |
| *9 | WIRE HARNESS | *10 | GASKET |
| *11 | NO. 1 OIL COOLER TUBE CLAMP | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with union nut wrench |
| ● | Non-reusable part | | Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent |
| ★ | Precoated part | - | - |
