Lexus NX: Drive Motor "A" Inverter Voltage Sensor Circuit Range / Performance (P0D2E-565)
DTC SUMMARY
MALFUNCTION DESCRIPTION
VH voltage sensor signal malfunction in the inverter for the motor.
- Internal circuit malfunction in the inverter for the motor
- Malfunction in the sensors for inverter control (current sensor, voltage sensors (VH, VL), etc.)
DESCRIPTION
For a description of the inverter.
Click here .gif)
If an overvoltage occurs in the motor inverter, the MG ECU detects it and transmits this information to the hybrid vehicle control ECU.
HINT:
The term "drive motor A" indicates the motor (MG2).
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Warning Indicate |
|---|---|---|---|---|---|
| P0D2E-565 | Drive Motor "A" Inverter Voltage Sensor Circuit Range / Performance | Motor inverter overvoltage signal is detected (VH sensor circuit malfunction) and voltage after boosting does not change for a certain period of time. (1 trip detection logic) |
| Comes on | Master Warning Light: Comes on |
| DTC No. | Data List |
|---|---|
| P0D2E-565 | VH-Voltage after Boosting |
MONITOR DESCRIPTION
If the motor inverter detects a circuit malfunction, it will transmit a motor inverter overvoltage signal to the MG ECU. Then the MG ECU will send information about the malfunction to the hybrid vehicle control ECU. Upon receiving this signal, the hybrid vehicle control ECU will illuminate the MIL and store a DTC.
MONITOR STRATEGY
| Related DTCs | P0D2E (INF 565): OVH detection (Drive motor "A" inverter voltage sensor malfunction) |
| Required sensors/components | Motor inverter |
| Frequency of operation | Continuous |
| Duration | TMC's intellectual property |
| MIL operation | 1 driving cycle |
| Sequence of operation | None |
TYPICAL ENABLING CONDITIONS
| The monitor will run whenever the following DTCs are not stored | TMC's intellectual property |
| Other conditions belong to TMC's intellectual property | - |
TYPICAL MALFUNCTION THRESHOLDS
| Other conditions belong to TMC's intellectual property | - |
COMPONENT OPERATING RANGE
| Hybrid vehicle control ECU | DTC P0D2E (INF 565) is not detected |

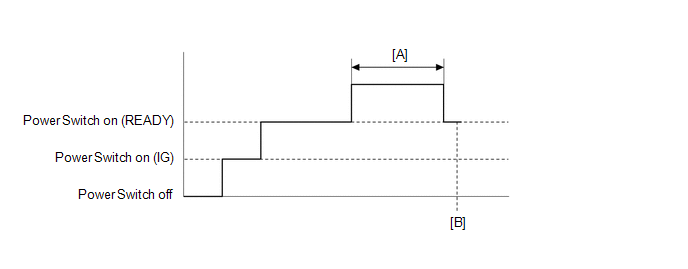

CONFIRMATION DRIVING PATTERN
.png)
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG) and turn the Techstream on.
- Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
- Turn the power switch off and wait for 30 seconds or more.
- Turn the power switch on (IG) and turn the Techstream on.
- Turn the power switch on (READY).
- With the shift lever in P and engine stopped, depress the accelerator pedal to start the engine. [A]
- Enter the following menus: Powertrain / Hybrid Control / Trouble Codes. [B]
-
Read the current DTCs.
HINT:
- If a current DTC is output, the system is malfunctioning.
- If current DTCs are not output, perform the following steps to check for permanent DTCs.
- Check that the permanent DTCs are cleared.
- If the permanent DTCs are not cleared, perform a universal trip, and then check for permanent DTCs again.
CAUTION / NOTICE / HINT
CAUTION:
- Before inspecting the high-voltage system or disconnecting the low voltage connector of the inverter with converter assembly, take safety precautions such as wearing insulated gloves and removing the service plug grip to prevent electrical shocks. After removing the service plug grip, put it in your pocket to prevent other technicians from accidentally reconnecting it while you are working on the high-voltage system.
-
After removing the service plug grip, wait for at least 10 minutes before touching any of the high-voltage connectors or terminals. After waiting for 10 minutes, check the voltage at the terminals in the inspection point in the inverter with converter assembly. The voltage should be 0 V before beginning work.
Click here
HINT:
Waiting for at least 10 minutes is required to discharge the high-voltage capacitor inside the inverter with converter assembly.
NOTICE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
Click here
HINT:
After the repair, clear the DTCs and perform the following procedure to check that DTCs are not output.
- With the engine stopped, the power switch on (READY) and the shift lever in P, depress the accelerator pedal to start the engine.
PROCEDURE
| 1. | CHECK CONNECTOR CONNECTION CONDITION (INVERTER WITH CONVERTER ASSEMBLY CONNECTOR) |
Click here
| Result | Proceed to |
|---|---|
| OK | A |
| NG (The connector is not connected securely.) | B |
| NG (The terminals are not making secure contact or are deformed, or water or foreign matter exists in the connector.) | C |
| A | .gif) | REPLACE INVERTER WITH CONVERTER ASSEMBLY |
| B | | CONNECT SECURELY |
| C | | REPAIR OR REPLACE HARNESS OR CONNECTOR |
