Lexus NX: Rear window wiper and washer

Lexus NX Owners Manual / Driving / Operating the lights and wipers / Rear window wiper and washer

NOTICE

■When the rear window is dry Do not use the wiper, as it may damage the rear window.

Operating the wiper lever

Operating the switch operates the rear wiper as follows:

Type A

Lexus NX. Operating the lights and wipers

  1. Off

  2. Intermittent operation

  3. Normal operation

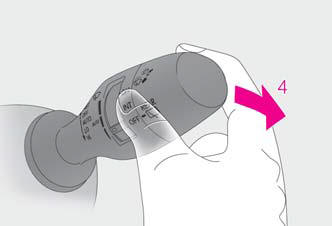

Lexus NX. Operating the lights and wipers

  1. Washer/wiper dual operation

Pushing the lever operates the wiper and washer.

The wiper will automatically operate a couple of times after the washer squirts.

Type B

Lexus NX. Operating the lights and wipers

  1. Off

  2. Intermittent operation

  3. Normal operation

Lexus NX. Operating the lights and wipers

  1. Washer/wiper dual operation

Pushing the lever operates the wiper and washer.

The wiper will automatically operate a couple of times after the washer squirts.

■The rear window wiper and washer can be operated when The power switch is in ON mode.

NOTICE

■When the washer fluid tank is empty Do not operate the switch continually as the washer fluid pump may overheat.

■When a nozzle becomes blocked In this case, contact your Lexus dealer.

Do not try to clear it with a pin or other object. The nozzle will be damaged.

■To prevent 12-volt battery discharge Do not leave the wiper on longer than necessary when the hybrid system is off.
