COMPONENTS
ILLUSTRATION
| *1 | COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY | *2 | FRONT FENDER TO COWL SIDE SEAL LH |
| *3 | FRONT FENDER TO COWL SIDE SEAL RH | *4 | FRONT WIPER ARM HEAD CAP |
| *5 | FRONT WIPER ARM LH | *6 | FRONT WIPER ARM RH |
| *7 | NO. 1 WINDSHIELD OUTSIDE MOULDING CLIP | *8 | WINDSHIELD OUTSIDE MOULDING LH |
| *9 | WINDSHIELD OUTSIDE MOULDING RH | *10 | RIVET |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

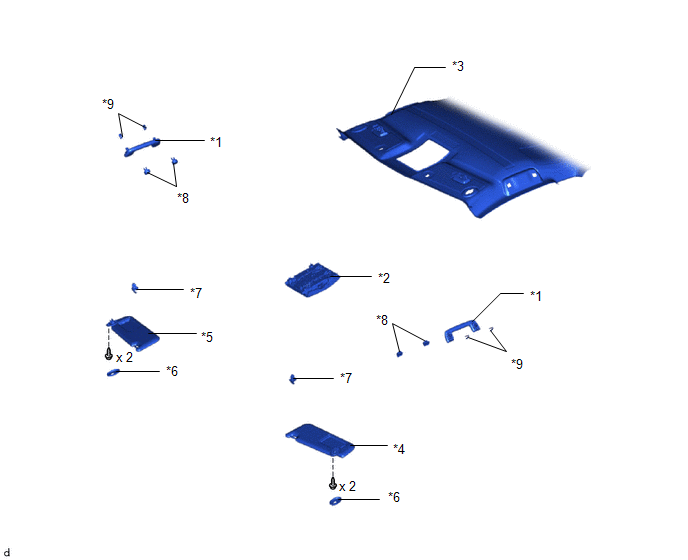

ILLUSTRATION
| *1 | ASSIST GRIP SUB-ASSEMBLY | *2 | MAP LIGHT ASSEMBLY |
| *3 | ROOF HEADLINING ASSEMBLY | *4 | VISOR ASSEMBLY LH |
| *5 | VISOR ASSEMBLY RH | *6 | VISOR BRACKET COVER |
| *7 | VISOR HOLDER | *8 | ASSIST GRIP COVER |
| *9 | CLIP | - | - |
ILLUSTRATION
| *1 | FRONT DOOR OPENING TRIM WEATHERSTRIP LH | *2 | FRONT DOOR OPENING TRIM WEATHERSTRIP RH |
| *3 | FRONT PILLAR GARNISH ASSEMBLY LH | *4 | FRONT PILLAR GARNISH ASSEMBLY RH |
ILLUSTRATION
| *1 | FORWARD RECOGNITION CAMERA | *2 | FORWARD RECOGNITION LATCH |
| *3 | FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY | *4 | NO. 1 FORWARD RECOGNITION COVER |
| *5 | NO. 2 FORWARD RECOGNITION COVER | - | - |
ILLUSTRATION
| *A | for 1-piece Type | *B | for 2-piece Type |
| *1 | NO. 1 WINDSHIELD GLASS STOPPER | *2 | NO. 2 WINDSHIELD GLASS STOPPER |
| *3 | WINDOW GLASS ADHESIVE DAM | *4 | WINDSHIELD GLASS |
| *5 | WINDSHIELD OUTSIDE MOULDING | - | - |
| ● | Non-reusable part | - | - |
