Lexus NX: Components
COMPONENTS
ILLUSTRATION
| *1 | BENCH TYPE REAR SEAT CUSHION ASSEMBLY | *2 | DECK BOARD ASSEMBLY |
| *3 | NO. 2 BATTERY SERVICE COVER BOARD | *4 | NO. 3 BATTERY SERVICE COVER BOARD |
| *5 | TONNEAU COVER ASSEMBLY | - | - |
ILLUSTRATION
| *1 | NO. 2 BATTERY SERVICE COVER BOARD | *2 | NO. 3 BATTERY SERVICE COVER BOARD |
| *3 | REAR DOOR SCUFF PLATE LH | *4 | REAR DOOR SCUFF PLATE RH |
| *5 | REAR POWER SEAT SWITCH | *6 | REAR SEAT CUSHION LOCK HOOK |
| *7 | REAR SEATBACK ASSEMBLY LH | *8 | REAR SEATBACK ASSEMBLY RH |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

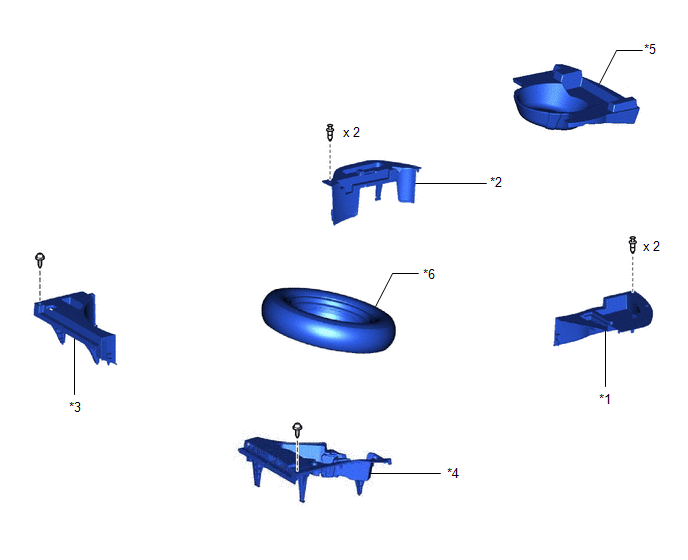

ILLUSTRATION
| *1 | DECK FLOOR BOX LH | *2 | DECK FLOOR BOX RH |
| *3 | NO. 1 TOOL BOX SUB-ASSEMBLY | *4 | NO. 2 TOOL BOX SUB-ASSEMBLY |
| *5 | REAR DECK FLOOR BOX | *6 | SPARE TIRE |

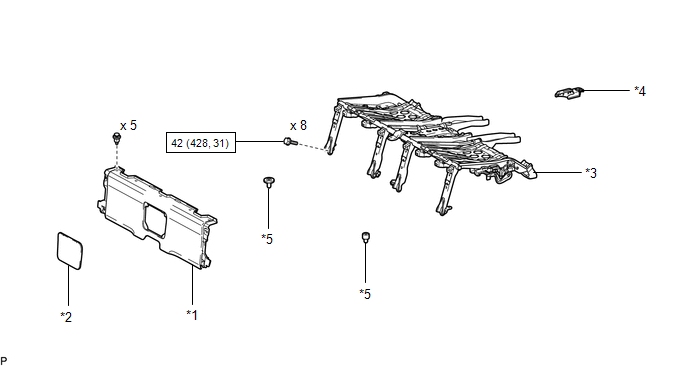

ILLUSTRATION
| *1 | BATTERY SERVICE COVER BOARD | *2 | BATTERY SERVICE HOLE COVER |
| *3 | NO. 1 SEAT LEG ASSEMBLY | *4 | REAR SEAT CUSHION EDGE PROTECTOR |
| *5 | SEAT ADJUSTER COVER CAP | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *1 | BENCH TYPE REAR SEAT CUSHION COVER | *2 | SEAT COVER WIRE |
| *3 | BENCH TYPE REAR SEAT CUSHION PAD | *4 | HOG RING |
| ● | Non-reusable part | - | - |
ILLUSTRATION
| *1 | REAR SEAT CENTER LAP TYPE BELT ASSEMBLY LH | *2 | REAR SEAT INNER BELT ASSEMBLY LH |
| *3 | REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH | *4 | SEAT ADJUSTER COVER CAP RH |
| | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | for RH Side | - | - |
| *1 | REAR SEAT CUSHION MOULDING RH | *2 | REAR SEAT CUSHION MOULDING RH |
| *3 | REAR SEAT HEADREST ASSEMBLY | *4 | REAR SEATBACK BOARD CARPET ASSEMBLY RH |
| *5 | REAR SEATBACK COVER | - | - |
ILLUSTRATION
| *A | for RH Side | *B | w/o Seat Heater System |
| *C | w/ Seat Heater System | - | - |
| *1 | CLAMP(REAR SEAT) | *2 | FOLD SEAT CONTROL ECU |
| *3 | REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY | *4 | REAR SEAT WIRE RH |
| *5 | REAR SEATBACK PROTECTOR | *6 | RECLINING ADJUSTER INSIDE COVER RH |
| *7 | RECLINING ADJUSTER INSIDE COVER RH | *8 | SEAT HEATER CONTROL SUB-ASSEMBLY |
| *9 | SEPARATE TYPE REAR SEATBACK COVER WITH PAD | *10 | REAR SEATBACK PROTECTOR RH |
| *11 | REAR SEATBACK FRAME SUB-ASSEMBLY RH | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | for LH Side | - | - |
| *1 | REAR SEAT CENTER HEADREST ASSEMBLY | *2 | REAR SEAT CUSHION MOULDING LH |
| *3 | REAR SEAT HEADREST ASSEMBLY | *4 | REAR SEATBACK BOARD CARPET ASSEMBLY LH |
| *5 | REAR SEATBACK COVER | - | - |
ILLUSTRATION
| *A | for LH Side | - | - |
| *1 | CENTER ARMREST HINGE COVER | *2 | CENTER SEAT HINGE COVER |
| *3 | CUP HOLDER ASSEMBLY | *4 | NO. 1 SEAT ARMREST ASSEMBLY |
| *5 | NO. 1 SEATBACK COVER | *6 | NO. 1 SEATBACK COVER |
| *7 | REAR NO. 1 SEAT CENTER ARMREST PLATE | *8 | REAR SEAT ARMREST HOLE COVER |
| *9 | REAR SEAT CENTER ARMREST ASSEMBLY | *10 | REAR SEAT CENTER ARMREST COVER |
| *11 | REAR SEATBACK PROTECTOR SHAFT BUSH | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | for LH Side | *B | w/o Seat Heater System |
| *C | w/ Seat Heater System | - | - |
| *1 | CLAMP(REAR SEAT) | *2 | FOLD SEAT CONTROL ECU |
| *3 | REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY | *4 | REAR SEAT CUSHION MOULDING LH |
| *5 | REAR SEAT WIRE LH | *6 | REAR SEATBACK HOLDER |
| *7 | REAR SEATBACK PROTECTOR | *8 | RECLINING ADJUSTER INSIDE COVER LH |
| *9 | RECLINING ADJUSTER INSIDE COVER LH | *10 | SEAT HEATER CONTROL SUB-ASSEMBLY |
| *11 | SEPARATE TYPE REAR SEATBACK COVER WITH PAD | *12 | REAR SEATBACK PROTECTOR LH |
| *13 | REAR SEATBACK FRAME SUB-ASSEMBLY LH | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *1 | SEAT COVER WIRE | *2 | SEPARATE TYPE REAR SEATBACK COVER LH |
| *3 | SEPARATE TYPE REAR SEATBACK COVER RH | *4 | SEPARATE TYPE REAR SEATBACK PAD LH |
| *5 | SEPARATE TYPE REAR SEATBACK PAD RH | *6 | HOG RING |
| ● | Non-reusable part | - | - |
