Lexus NX: Components
COMPONENTS
ILLUSTRATION
| *1 | FRONT DOOR INSIDE HANDLE BEZEL PLUG LH | *2 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH |
| *3 | FRONT DOOR TRIM COVER LH | *4 | OUTER MIRROR INSTALL HOLE COVER LH |
| *5 | OUTER REAR VIEW MIRROR ASSEMBLY LH | *6 | POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

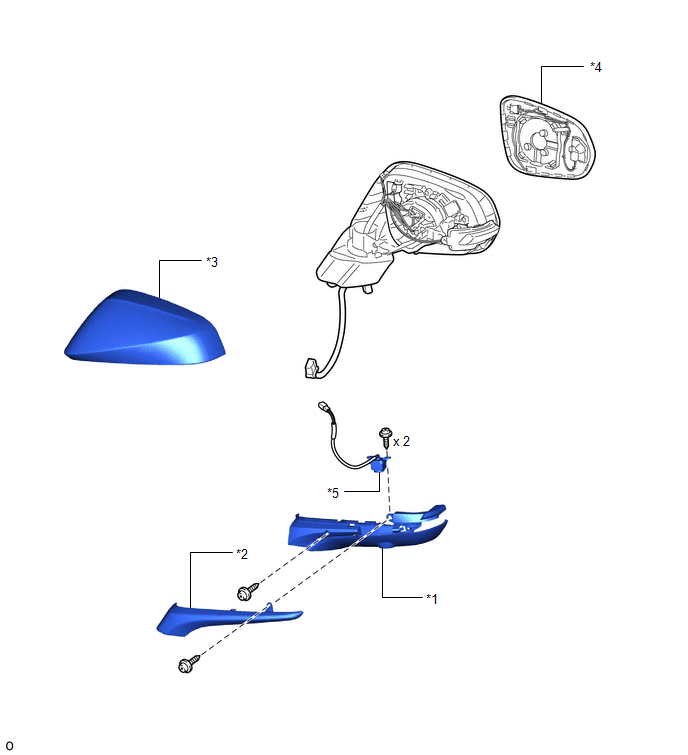

ILLUSTRATION
| *1 | LOWER OUTER MIRROR COVER LH | *2 | OUTER MIRROR BEZEL LH |
| *3 | OUTER MIRROR COVER LH | *4 | OUTER MIRROR LH |
| *5 | SIDE TELEVISION CAMERA ASSEMBLY LH | - | - |
READ NEXT:
Removal
REMOVAL CAUTION / NOTICE / HINT HINT:
Use the same procedure for the RH and LH sides.
The procedure listed below is for the LH side.
PROCEDURE 1. PRECAUTION Click here 2. REMOVE FRONT DOOR T
Installation
INSTALLATION CAUTION / NOTICE / HINT HINT:
Use the same procedure for the RH and LH sides.
The procedure listed below is for the LH side.
PROCEDURE 1. INSTALL SIDE TELEVISION CAMERA ASSEMBLY L
