DISPOSAL

CAUTION / NOTICE / HINT

HINT:

The tire pressure warning valve and transmitter is powered by a lithium battery. When disposing of the tire pressure warning valve and transmitter, remove the battery and dispose of it properly.

PROCEDURE

1. DISPOSE OF TIRE PRESSURE WARNING VALVE AND TRANSMITTER

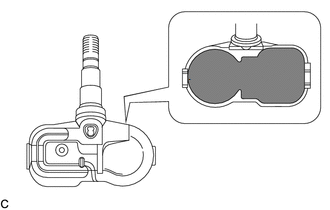

Urethane

(a) Remove the urethane that protects the lithium battery and circuit board.

(b) Cut the 2 terminals to remove the lithium battery from the tire pressure warning valve and transmitter.

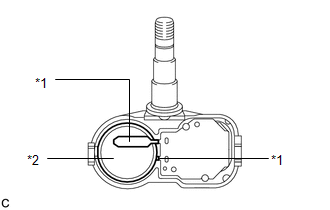

*1	Terminal
*2	Lithium Battery
