Lexus NX: Installation

INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

PROCEDURE

1. INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY LH

(a) Attach the 2 hooks to install the lumbar support adjuster assembly LH to the front seatback frame sub-assembly LH.

2. INSTALL FRONT SEATBACK EDGE PROTECTOR

(a) Attach the 2 claws and 4 guides to install the 2 front seatback edge protectors.

(b) w/ Climate Control Seat System:

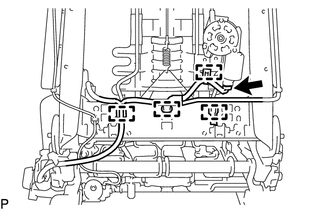

(1) Attach the 4 clamps to connect the front No. 2 seat wire LH.

(2) Connect the connector.

(c) w/o Climate Control Seat System:

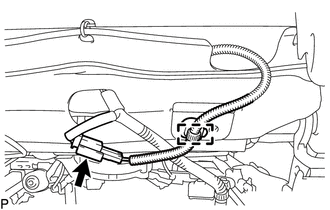

(1) Attach the 2 clamps to connect the front No. 2 seat wire LH.

(2) Connect the connector.

3. INSTALL FRONT NO. 1 SEATBACK HOOK

Click here

4. INSTALL SEATBACK FELT

Click here

5. INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

(a) Temporarily install the separate type front seatback cover with pad.

(b) w/ Climate Control Seat System:

(1) Attach the 2 claws to connect the duct of the seatback climate control blower.

(c) Connect the 3 seatback cover brackets with the 2 nuts.

Torque:

5.5 N·m {56 kgf·cm, 49 in·lbf}

NOTICE:

  • For vehicles with a front seat airbag assembly, the separate type front seatback cover with pad must be securely installed. Otherwise, the front seat airbag assembly may not deploy properly.
  • Make sure that the strap is not twisted after installing the nut.
  • Install the brackets securely.

(d) Attach the clamp to connect the seat heater wire harness.

(e) Connect the connector.

6. INSTALL FRONT SEAT HEADREST SUPPORT

Click here

7. INSTALL FRONT INNER SEAT CUSHION SHIELD LH

Click here

8. INSTALL FRONT SEAT CUSHION SHIELD LH

Click here

9. INSTALL FRONT LOWER SEAT CUSHION SHIELD

Click here

10. INSTALL FRONT SEAT ASSEMBLY LH

Click here
