Lexus NX: Components
COMPONENTS

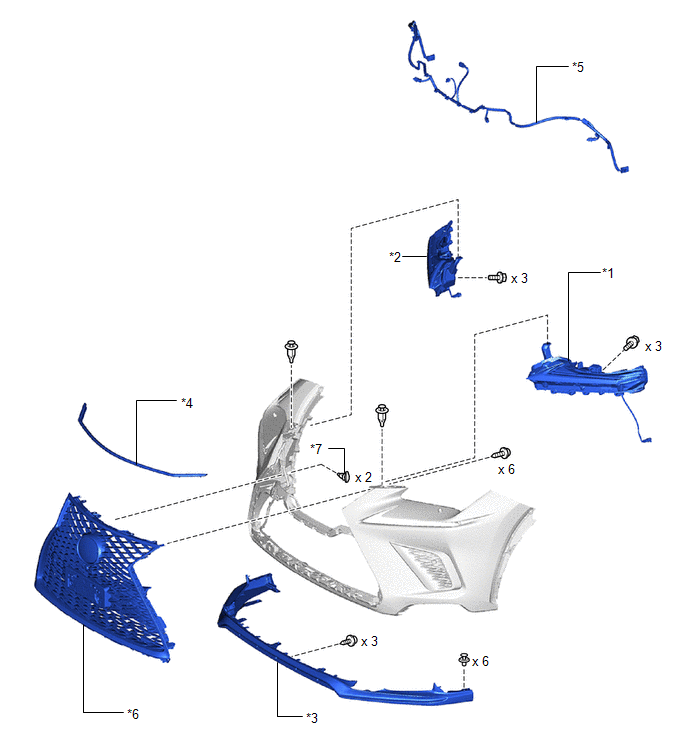

ILLUSTRATION
| *1 | CLEARANCE LIGHT ASSEMBLY LH | *2 | CLEARANCE LIGHT ASSEMBLY RH |
| *3 | FRONT BUMPER GUARD ASSEMBLY | *4 | HOOD TO FRONT END PANEL SEAL |
| *5 | NO. 3 ENGINE ROOM WIRE | *6 | RADIATOR GRILLE SUB-ASSEMBLY |
| *7 | OUTSIDE MOULDING RETAINER | - | - |
ILLUSTRATION
| *A | w/ Panoramic View Monitor System | *B | w/ Intuitive Parking Assist System |
| *1 | FRONT BUMPER EXTENSION MOUNTING BRACKET | *2 | FRONT BUMPER HOLE COVER LH |
| *3 | FRONT BUMPER HOLE COVER RH | *4 | FRONT CENTER ULTRASONIC SENSOR |
| *5 | FRONT TELEVISION CAMERA ASSEMBLY | *6 | LOWER NO. 1 RADIATOR GRILLE |
| *7 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *8 | NO. 3 RADIATOR GRILLE GARNISH |
| *9 | NUT | *10 | RADIATOR GRILLE EMBLEM |
| *11 | RADIATOR GRILLE MOULDING | - | - |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
READ NEXT:
Removal
REMOVAL PROCEDURE 1. REMOVE FRONT BUMPER ASSEMBLY Click here 2. REMOVE NO. 3 ENGINE ROOM WIRE Click here 3. REMOVE CLEARANCE LIGHT ASSEMBLY LH Click here 4. REMOVE CLEARANCE LIGHT ASSEMBLY RH HI
Disassembly
DISASSEMBLY PROCEDURE 1. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY Click here 2. REMOVE FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System) Click here 3. REMOVE FRONT CENTER ULT
Reassembly
REASSEMBLY PROCEDURE 1. INSTALL NUT (a) Install the 2 nuts. 2. INSTALL RADIATOR GRILLE EMBLEM (a) Attach the claw and guide to install the radiator grille emblem. (b) Ins
