Lexus NX: Automatic High Beam Camera (B124C)
Lexus NX Service Manual / Vehicle Exterior / Lighting (ext) / Automatic High Beam System / Automatic High Beam Camera (B124C)
DESCRIPTION
The main body ECU (multiplex network body ECU) detects a high beam headlight illumination request signal of the automatic high beam system from the forward recognition camera.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area |
|---|---|---|---|
| B124C | Automatic High Beam Camera | Malfunction in forward recognition camera | Front camera system |

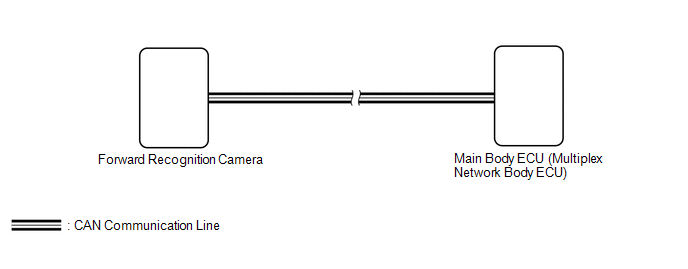

WIRING DIAGRAM
PROCEDURE
| 1. | CHECK FRONT CAMERA SYSTEM |
(a) Check the front camera system.
Click here .gif)
| NEXT | .gif) | END |
