COMPONENTS
ILLUSTRATION
| *A | for Sport Package | - | - |
| *1 | BACK DOOR NAME PLATE | *2 | BACK DOOR NO. 2 NAME PLATE |
| *3 | REAR BODY NO. 4 NAME PLATE | *4 | SYMBOL EMBLEM |
| ● | Non-reusable part | - | - |

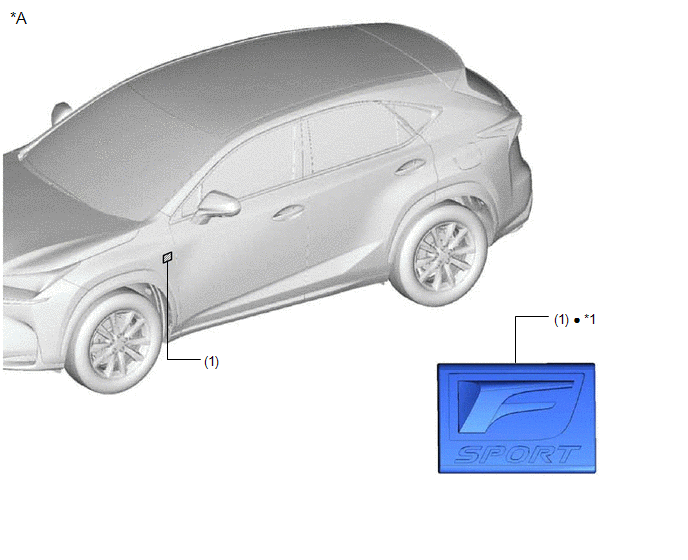

ILLUSTRATION
| *A | for Sport Package | - | - |
| *1 | FRONT FENDER NO. 1 NAME PLATE | - | - |
| ● | Non-reusable part | - | - |
